Iscar ISCAR 6002451

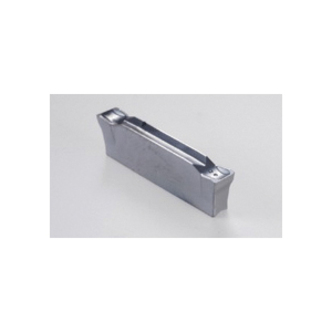

Iscar 6002451 DO-GRIP Cut-Off/Parting Insert, 3102C Insert, DGL Insert, Material Grade: M, P, S, 3.1 mm W Cutting, 6 deg Lead Angle, Left Hand Lead Angle Direction, Carbide, Manufacturers Grade: IC328, PVD Coated

UNSPSC: 23242107
Manufacturer PN: 6002451
$38.58 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGL Insert, 3102C Insert, 3.1 mm Cutting Width, 6 deg Lead Angle, Left Hand Lead Angle Direction, Rectangle Shape, 3.1 mm Width, 21 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGL 3102C-6D IC328, 90 deg Included Angle, Left Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S

  • Features

  • A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
  • Medium-to-high feeds
  • IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions

Specifications

ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3.1 mm
FinishPVD Coated
Hand of InsertLeft
Included Angle90 deg
Insert Size3102C
Insert StyleDGL
ISO CodeDGL 3102C-6D IC328
Lead Angle6 deg
Lead Angle DirectionLeft Hand
Length21 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm
