Iscar ISCAR 6002424

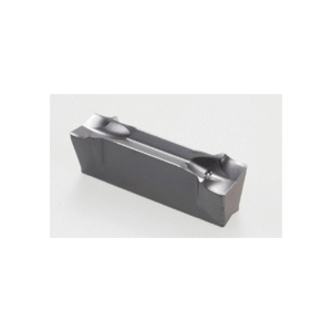

Iscar 6002424 DO-GRIP Cut-Off/Parting Insert, 5003J Insert, DGN Insert, Material Grade: M, P, S, 5 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Dgn 5003j Ic328
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 5003J Insert, 5 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 5 mm Width, 19 mm Length, J Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGN 5003J IC328, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.3 mm
Cutting Width5 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size5003J
Insert StyleDGN
ISO CodeDGN 5003J IC328
Lead Angle0 deg
Lead Angle DirectionNeutral
Length19 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width5 mm
Additional Information
Country of OriginIL
