Iscar ISCAR 6002423

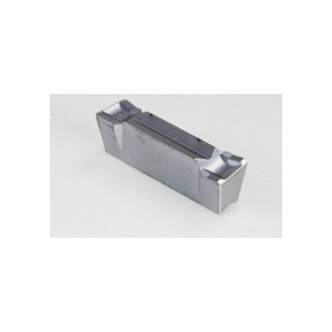

Iscar 6002423 DO-GRIP Parting Insert, 5003C Insert, DGN Insert, Material Grade: M, P, S, 5 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated

Invoice description: Dgn 5003c Ic328

UNSPSC: 23291503

Manufacturer PN: 6002423

^$44.56 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

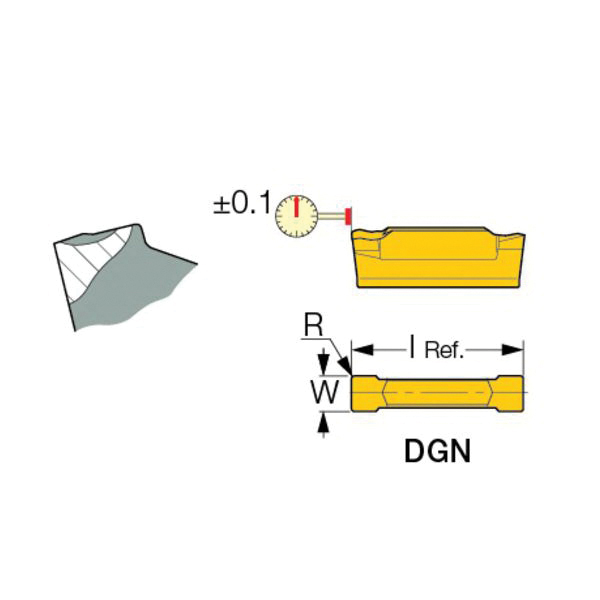

Iscar Parting Insert, Series: DO-GRIP, DGN Insert, 5003C Insert, 5 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 5 mm Width, 19.1 mm Length, C Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGN 5003C IC328, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S

Features
Used for parting bars, hard materials and tough applications
A positive rake, single cavity with a negative land and shoulders
Medium-to-high feeds
IC328 grade - a thin PVD-coated TiCN layer on a P45-K40 substrate
Very high toughness
For milling, parting and grooving of steel, stainless and alloy steels at low-to medium cutting speeds and for unstable machining condition
C-type chipbreaker - first choice for the parting of bars, hard materials, and tough applications
A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
Medium-to high feed
