Iscar ISCAR 6002422

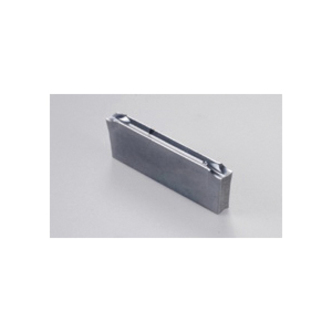

Iscar 6002422 DO-GRIP Cut-Off/Parting Insert, 2202J Insert, DGN Insert, Material Grade: M, P, S, 2.2 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Dgn 2202j Ic328
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 2202J Insert, 2.2 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, 19.8 mm Length, J Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGN 2202J IC328, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.2 mm
Cutting Width2.2 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size2202J
Insert StyleDGN
ISO CodeDGN 2202J IC328
Lead Angle0 deg
Lead Angle DirectionNeutral
Length19.8 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIL
