Iscar ISCAR 6002419

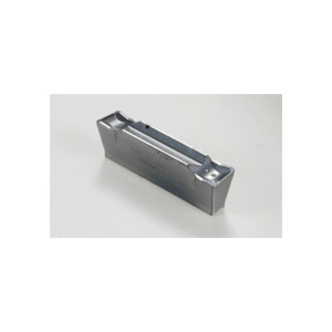

Iscar 6002419 DO-GRIP Cut-Off/Parting Insert, 4003C Insert, DGN Insert, Material Grade: M, P, S, 4 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328, PVD Coated
Invoice description:
Dgn 4003c Ic328
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 4003C Insert, 4 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, 18.8 mm Length, C Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGN 4003C IC328, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.3 mm
Cutting Width4 mm
FinishPVD Coated
Hand of InsertNeutral
Included Angle90 deg
Insert Size4003C
Insert StyleDGN
ISO CodeDGN 4003C IC328
Lead Angle0 deg
Lead Angle DirectionNeutral
Length18.8 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width4 mm
Additional Information
Country of OriginIL
