Iscar ISCAR 6002404

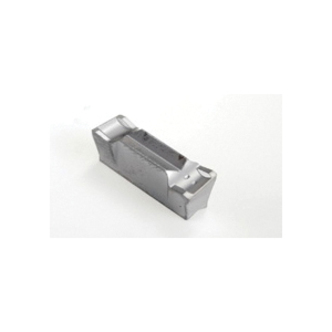

Iscar 6002404 DO-GRIP Parting Insert With Internal Coolant Channel, 6303C Insert, DGR Insert, Material Grade: M, P, 6.35 mm W Cutting, 4 deg Lead Angle, Right Hand Lead Angle Direction, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Dgr 6303c-4d Ic354
Factory Order

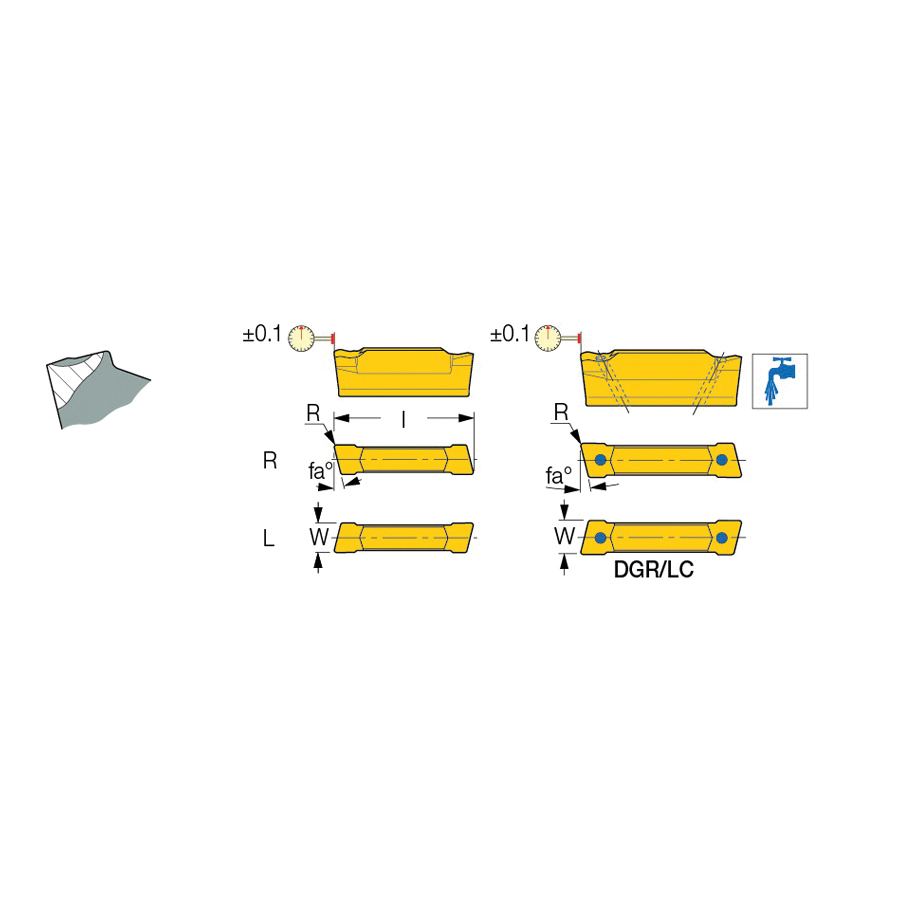

Iscar Parting Insert, Series: DO-GRIP, DGR Insert, 6303C Insert, 6.35 mm Cutting Width, 4 deg Lead Angle, Right Hand Lead Angle Direction, Rectangle Shape, 6.35 mm Width, 19.1 mm Length, C Chipbreaker, 0.35 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: DGR 6303C-4D IC354, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds
Specifications
ApplicationFor groove turning applications
ChipbreakerC
Corner Radius0.35 mm
Cutting Width6.35 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size6303C
Insert StyleDGR
ISO CodeDGR 6303C-4D IC354
Lead Angle4 deg
Lead Angle DirectionRight Hand
Length19.1 mm
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
SeriesDO-GRIP
ShapeRectangle
Width6.35 mm
Additional Information
Country of OriginIS
