Iscar ISCAR 6002396

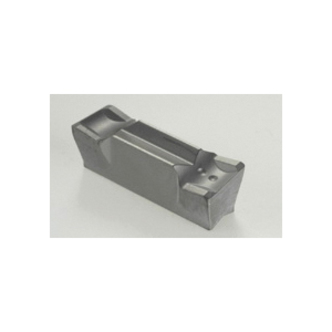

Iscar 6002396 DO-GRIP Parting Insert, 6303C Insert, DGN Insert, Material Grade: H, K, M, N, P, S, 6.35 mm W Cutting, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC20, Uncoated
Factory Order

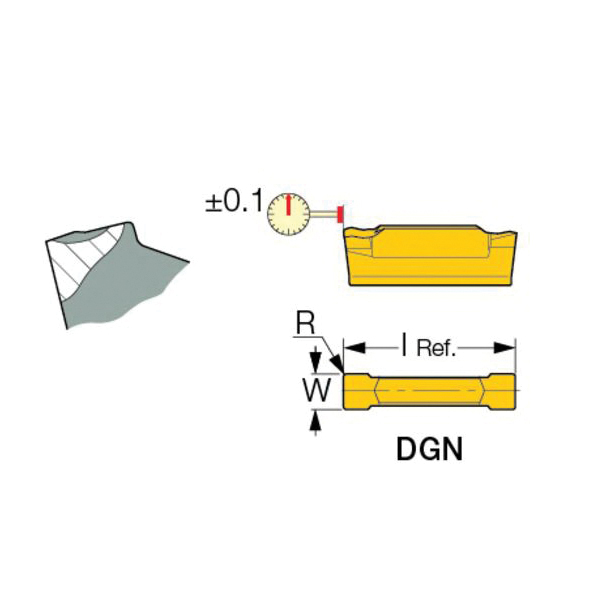

Iscar Parting Insert, Series: DO-GRIP, DGN Insert, 6303C Insert, 6.35 mm Cutting Width, Neutral Lead Angle Direction, Rectangle Shape, 6.35 mm Width, 19.1 mm Length, C Chipbreaker, 0.35 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: DGN 6303C IC20, 90 deg Included Angle, Neutral Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, P, S
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
- An uncoated carbide grade
- C-type chipbreaker - first choice for the parting of bars, hard materials, and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to high feed
Specifications
ApplicationExternal Grooving, Face Grooving, Face Grooving Along Shaft, Groove Turning and Internal Face Grooving
ChipbreakerC
Corner Radius0.35 mm
Cutting Width6.35 mm
FinishUncoated
Hand of InsertNeutral
Included Angle90 deg
Insert Size6303C
Insert StyleDGN
ISO CodeDGN 6303C IC20
Lead Angle DirectionNeutral
Length19.1 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, P, S
SeriesDO-GRIP
ShapeRectangle
Width6.35 mm
