Iscar ISCAR 6002393

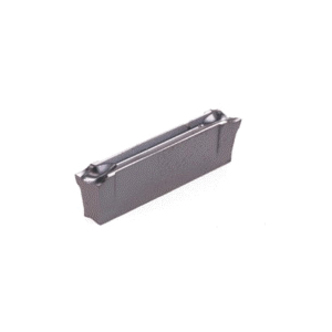

Iscar 6002393 DO-GRIP Cut-Off/Parting Insert, 5003J Insert, DGL Insert, Material Grade: M, P, 5 mm W Cutting, 4 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Dgl 5003j-4d Ic354
Factory Order

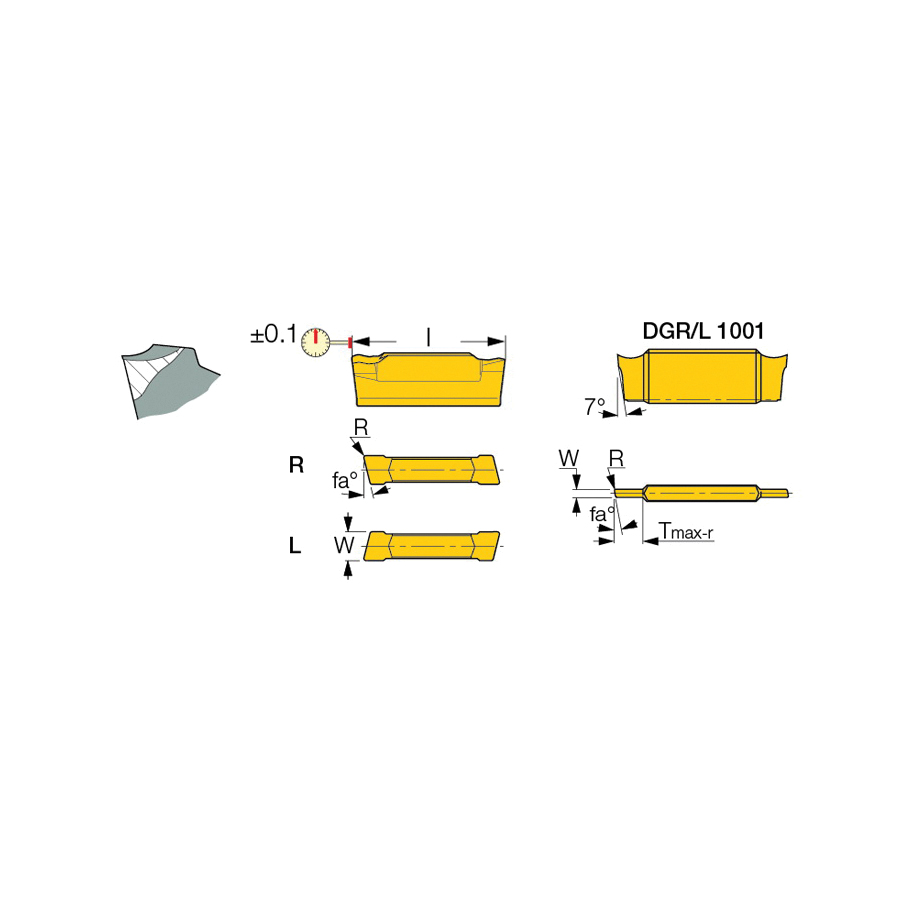

Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGL Insert, 5003J Insert, 5 mm Cutting Width, 4 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 5 mm Width, 19 mm Length, J Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: DGL 5003J-4D IC354, 90 deg Included Angle, Left Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.3 mm
Cutting Width5 mm
FinishPVD Coated
Hand of InsertLeft
Included Angle90 deg
Insert Size5003J
Insert StyleDGL
ISO CodeDGL 5003J-4D IC354
Lead Angle4 deg
Lead Angle DirectionLeft Hand
Length19 mm
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width5 mm
Additional Information
Country of OriginIL
