Iscar ISCAR 6002381

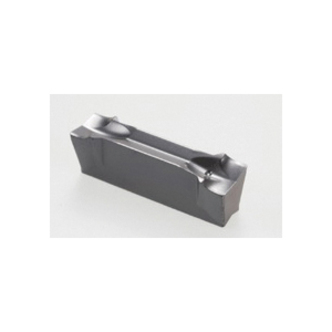

Iscar 6002381 DO-GRIP Parting Insert, 5003J DGN Insert, Material Grade: H, K, M, N, P, S, 5 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturer's Grade: IC20, Uncoated
Iscar Parting Insert, DGN Insert, 5003J Insert, 5 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangular, 5 mm Width, 19 mm Length, JT Chipbreaker, 0.3 mm Corner Radius, Manufacturer's Grade: IC20, ISO Code: DGN 5003J IC20, 90 deg Included Angle, Neutral Hand, Carbide, Uncoated, Material Grade: H, K, M, N, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- JS - sharp corner
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
- An uncoated carbide grade
- JT-type chipbreaker - the JT chipformer design is based on the J-type chipformer, with a t-land reinforced frontal cutting edge length
- JT chipformer provides a solution for the intermediate range between the strong and negative C-type configuration and the positive edged J-type chipformer
- The JT chipformer can be used on a wide range of materials, including soft or hard alloy and stainless steel, high temperature alloys and also cast iron
- The JT chipformer deforms the chips into compact shapes, in the same manner as the J-type, but it can be used at higher feeds due to its reinforced edge
Specifications
ApplicationExternal Grooving, Face Grooving, Face Grooving Along Shaft, Groove Turning and Internal Face Grooving
SeriesDO-GRIP
Insert StyleDGN
Insert Size5003J
Cutting Width5 mm
Lead Angle DirectionNeutral
Relief Angle7 deg
ShapeRectangular
