Iscar ISCAR 6002364

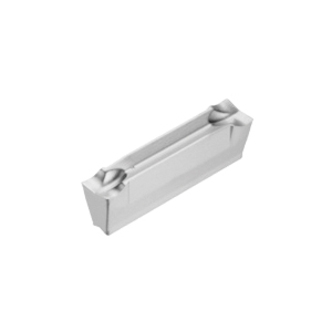

Iscar 6002364 DO-GRIP Cut-Off/Parting Insert, 4003J Insert, DGN Insert, Material Grade: M, P, 4 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Dgn 4003j Ic354
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 4003J Insert, 4 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, 18.9 mm Length, J Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: DGN 4003J IC354, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.3 mm
Cutting Width4 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size4003J
Insert StyleDGN
ISO CodeDGN 4003J IC354
Lead Angle0 deg
Lead Angle DirectionNeutral
Length18.9 mm
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width4 mm
Additional Information
Country of OriginIL
