Iscar ISCAR 6002363

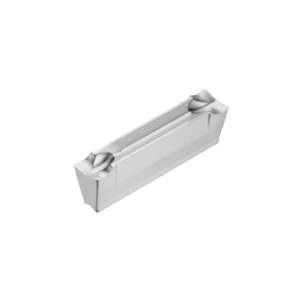

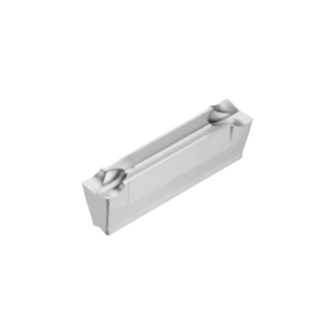

Iscar 6002363 DO-GRIP Cut-Off/Parting Insert, 4003J Insert, DGN Insert, Material Grade: H, K, M, N, S, 4 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC20, Uncoated
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 4003J Insert, 4 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, 18.9 mm Length, J Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: DGN 4003J IC20, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.3 mm
Cutting Width4 mm
FinishUncoated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size4003J
Insert StyleDGN
ISO CodeDGN 4003J IC20
Lead Angle DirectionNeutral
Length18.9 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width4 mm
