Iscar ISCAR 6002361

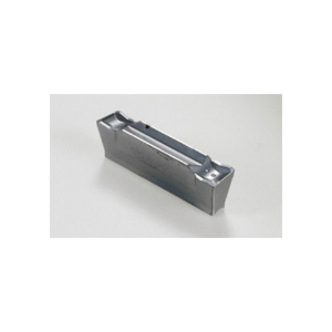

Iscar 6002361 DO-GRIP Parting Insert, 4003C Insert, DGN Insert, Material Grade: M, P, 4 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated

Invoice description: Dgn 4003c Ic354

UNSPSC: 23291503

Manufacturer PN: 6002361

^$41.64 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

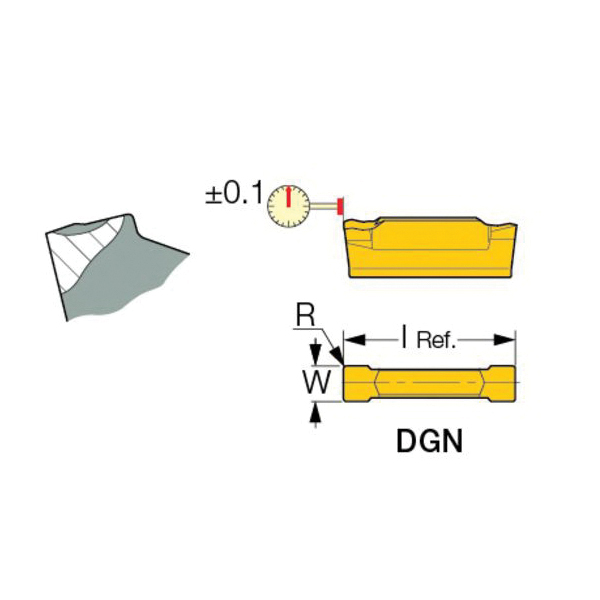

Iscar Parting Insert, Series: DO-GRIP, DGN Insert, 4003C Insert, 4 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 4 mm Width, 18.8 mm Length, C Chipbreaker, 0.3 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: DGN 4003C IC354, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P

Features
Used for parting bars, hard materials and tough applications
A positive rake, single cavity with a negative land and shoulders
Medium-to-high feeds
IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
High toughness
For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds
C-type chipbreaker - first choice for the parting of bars, hard materials, and tough applications
A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
Medium-to high feed
