Iscar ISCAR 6002350

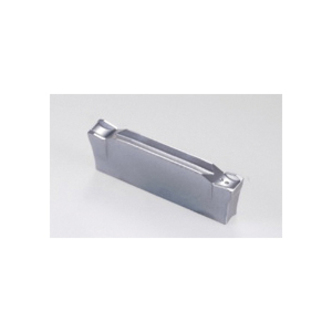

Iscar 6002350 DO-GRIP Parting Insert With Internal Coolant Channel, 3102C Insert, DGR Insert, Material Grade: M, P, 3.1 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Dgr 3102c-6d Ic354
Factory Order

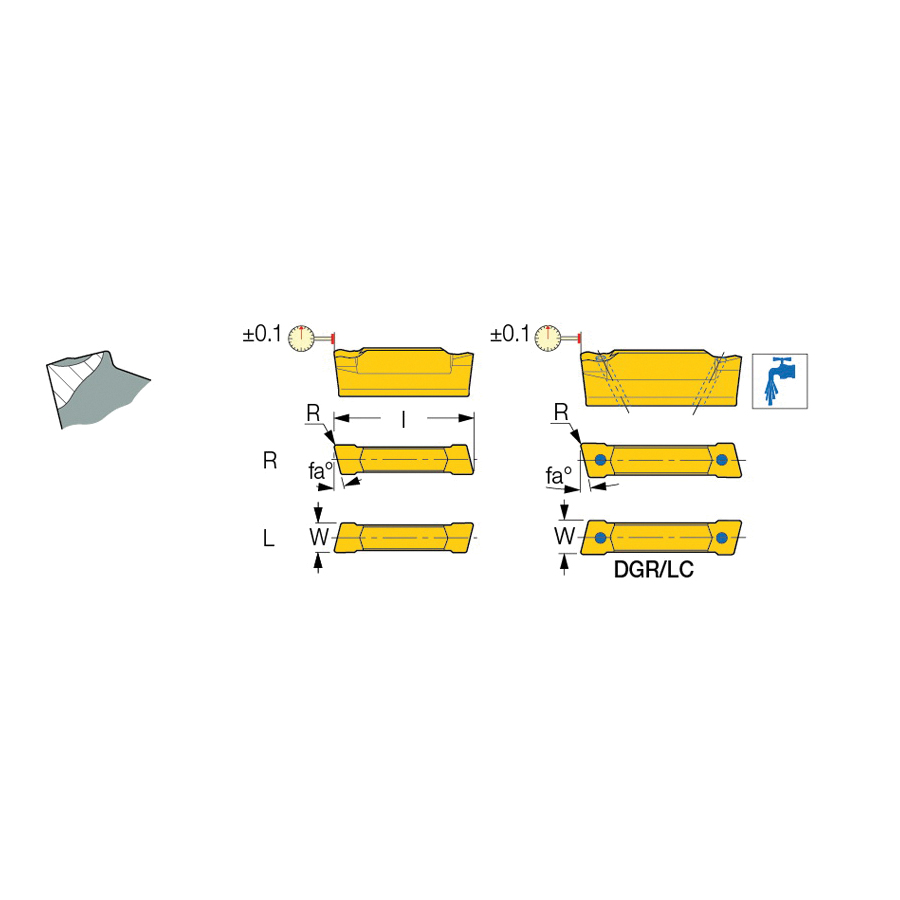

Iscar Parting Insert, Series: DO-GRIP, DGR Insert, 3102C Insert, 3.1 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.1 mm Width, 21 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: DGR 3102C-6D IC354, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to high cutting speeds
Specifications
ApplicationFor groove turning applications
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3.1 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3102C
Insert StyleDGR
ISO CodeDGR 3102C-6D IC354
Lead Angle6 deg
Lead Angle DirectionRight Hand
Length21 mm
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm
Additional Information
Country of OriginIS
