Iscar ISCAR 6002348

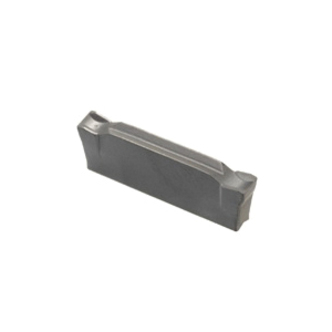

Iscar 6002348 DO-GRIP Cut-Off/Parting Insert, 3102C Insert, DGR Insert, Material Grade: H, K, M, N, S, 3.1 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, Carbide, Manufacturers Grade: IC20, Uncoated

UNSPSC: 23242107
Manufacturer PN: 6002348
$29.68 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGR Insert, 3102C Insert, 3.1 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, Rectangle Shape, 3.1 mm Width, 21 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: DGR 3102C-6D IC20, 90 deg Included Angle, Right Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, S

  • Features

  • First choice for the parting of bars, hard materials and tough applications
  • A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
  • Medium-to-high feeds
  • IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel

Specifications

ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3.1 mm
FinishUncoated
Hand of InsertRight
Included Angle90 deg
Insert Size3102C
Insert StyleDGR
ISO CodeDGR 3102C-6D IC20
Lead Angle6 deg
Lead Angle DirectionRight Hand
Length21 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm
