Iscar ISCAR 6002345

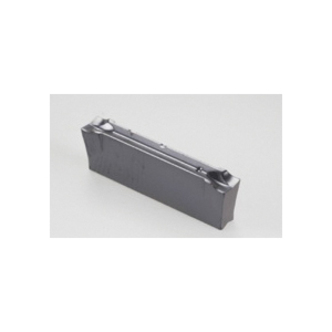

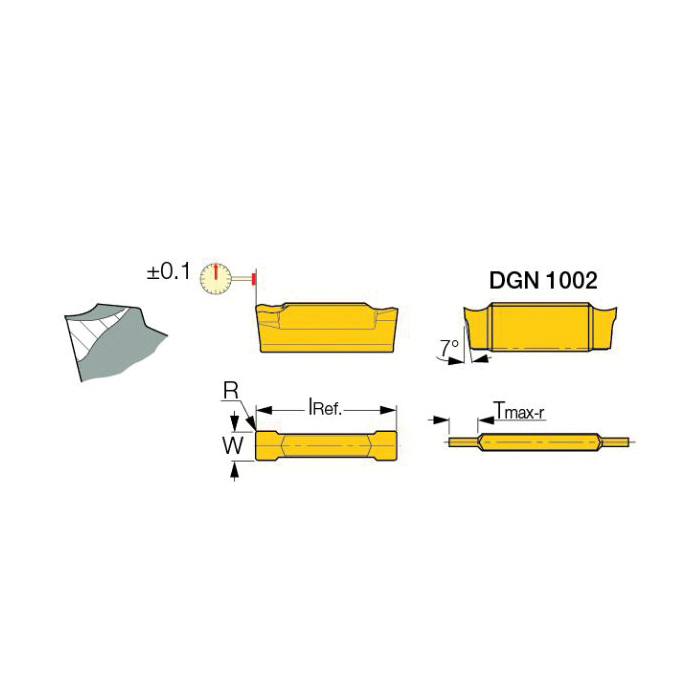

Iscar Parting Insert, Series: DO-GRIP, DGN Insert, 3102J Insert, 3.1 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.1 mm Width, 20.1 mm Length, JT Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: DGN 3102J IC20, 90 deg Included Angle, Neutral Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, P, S

• Features

• First choice for soft materials, parting of tubes, small diameters and thin walled parts
• General applications on low carbon, alloy and austenitic stainless steel
• Low-to-medium feeds
• JS - sharp corner
• IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
• An uncoated carbide grade
• JT-type chipbreaker - the JT chipformer design is based on the J-type chipformer, with a t-land reinforced frontal cutting edge length
• JT chipformer provides a solution for the intermediate range between the strong and negative C-type configuration and the positive edged J-type chipformer
• The JT chipformer can be used on a wide range of materials, including soft or hard alloy and stainless steel, high temperature alloys and also cast iron
• The JT chipformer deforms the chips into compact shapes, in the same manner as the J-type, but it can be used at higher feeds due to its reinforced edge
