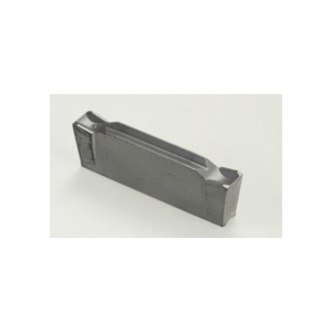

Iscar ISCAR 6002342
Iscar 6002342 DO-GRIP Cut-Off/Parting Insert, 3102C Insert, DGN Insert, Material Grade: H, K, M, N, S, 3.1 mm W Cutting, Neutral Lead Angle Direction, Carbide, Manufacturers Grade: IC20, Uncoated
Invoice description:
Dgn 3102c Ic20
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 3102C Insert, 3.1 mm Cutting Width, Neutral Lead Angle Direction, Rectangle Shape, 3.1 mm Width, 20.1 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: DGN 3102C IC20, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3.1 mm
FinishUncoated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size3102C
Insert StyleDGN
ISO CodeDGN 3102C IC20
Lead Angle DirectionNeutral
Length20.1 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm
Additional Information
Country of OriginIL
