Iscar ISCAR 6002322

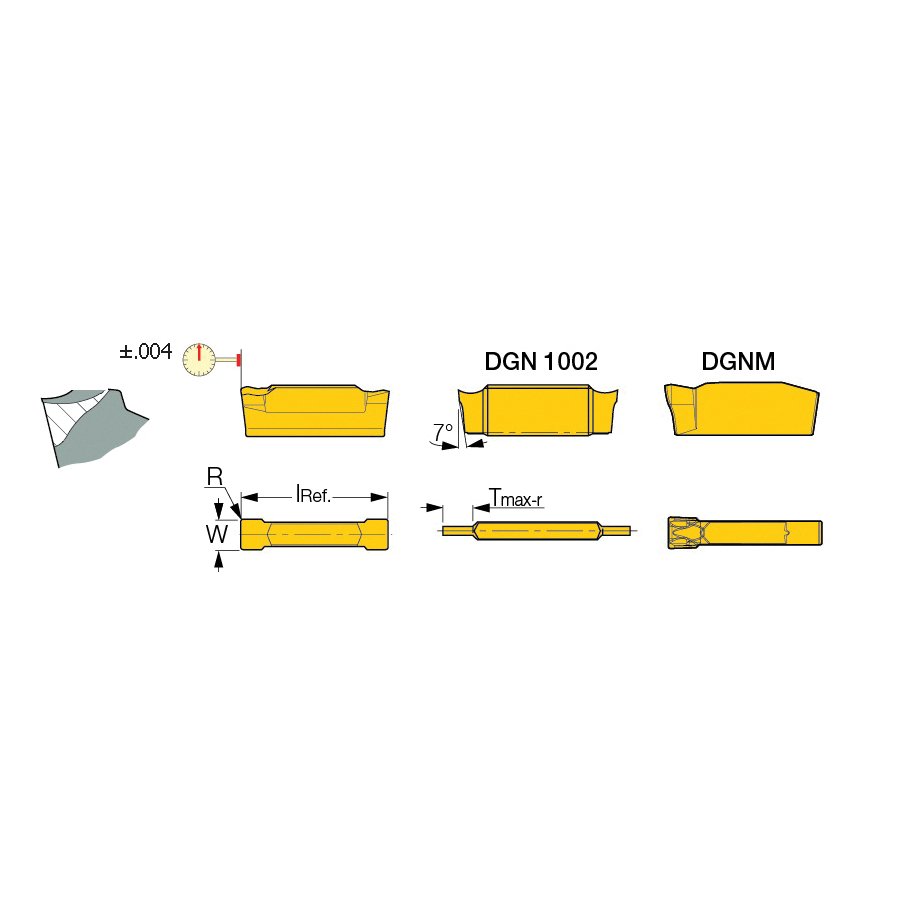

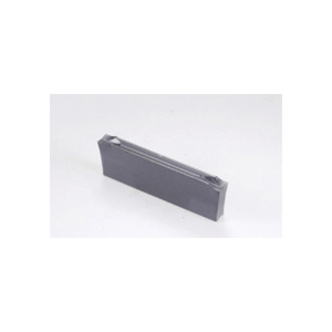

Iscar Parting Insert, Series: DO-GRIP, DGN Insert, 2202J Insert, 2.2 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, 19.8 mm Length, JT Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: DGN 2202J IC354, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P

• Features

• First choice for soft materials, parting of tubes, small diameters and thin walled parts
• General applications on low carbon, alloy and austenitic stainless steel
• Low-to-medium feeds
• JS - sharp corner
• IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
• High toughness
• For general applications in parting and grooving steel, alloy and stainless steel at medium-to high cutting speeds
• JT-type chipbreaker - the JT chipformer design is based on the J-type chipformer, with a t-land reinforced frontal cutting edge length
• JT chipformer provides a solution for the intermediate range between the strong and negative C-type configuration and the positive edged J-type chipformer
• The JT chipformer can be used on a wide range of materials, including soft or hard alloy and stainless steel, high temperature alloys and also cast iron
