Iscar ISCAR 6002321

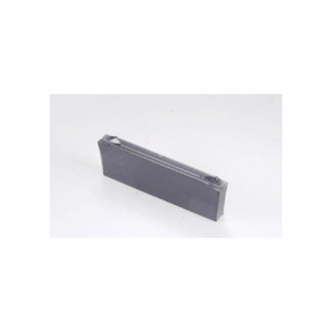

Iscar 6002321 DO-GRIP Cut-Off/Parting Insert, 2202J Insert, DGN Insert, Material Grade: H, K, M, N, S, 2.2 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC20, Uncoated
Invoice description:
Dgn 2202j Ic20
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 2202J Insert, 2.2 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, 19.8 mm Length, J Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: DGN 2202J IC20, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerJ
Corner Radius0.2 mm
Cutting Width2.2 mm
FinishUncoated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size2202J
Insert StyleDGN
ISO CodeDGN 2202J IC20
Lead Angle0 deg
Lead Angle DirectionNeutral
Length19.8 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIL
