Iscar ISCAR 6002319

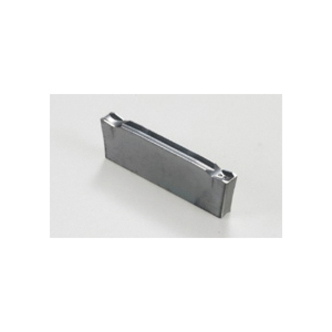

Iscar 6002319 DO-GRIP Cut-Off/Parting Insert, 2202C Insert, DGN Insert, Material Grade: M, P, 2.2 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC354, PVD Coated
Invoice description:
Dgn 2202c Ic354
Factory Order
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 2202C Insert, 2.2 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, 19.8 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC354, ISO Code: DGN 2202C IC354, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
Features
- Used for parting bars, hard materials and tough applications
- A positive rake, single cavity with a negative land and shoulders
- Medium-to-high feeds
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
- For general applications in parting and grooving steel, alloy and stainless steel at medium-to-high cutting speeds
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width2.2 mm
FinishPVD Coated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size2202C
Insert StyleDGN
ISO CodeDGN 2202C IC354
Lead Angle0 deg
Lead Angle DirectionNeutral
Length19.8 mm
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Country of OriginIL
