Iscar ISCAR 6001840

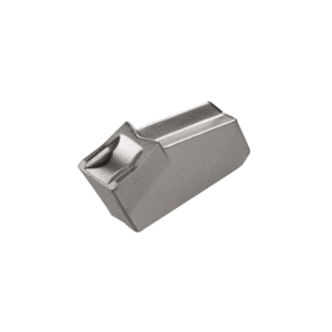

Iscar 6001840 SELF-GRIP Cut-Off/Parting Insert, 3M Insert, GFN Insert, Material Grade: H, K, M, N, P, S, 3.03 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC20, Uncoated
Invoice description:
Gfn 3m Ic20
Factory Order
Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 3M Insert, 3.03 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.03 mm Width, M Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: GFN 3M IC20, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, P, S
Features
- First choice for the parting of nonferrous materials, high temperature alloys (Ni-base, inconel, etc)
- Single cavity with a strong cutting edge
- Used for deep grooving at medium-to high feeds
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
- An uncoated carbide grade
- M-type chipbreaker - similar to C-type, but with modified edge
- Improved chip control at medium feed
Specifications
ApplicationExternal Grooving, Groove Turning and Internal Grooving
ChipbreakerM
Corner Radius0.2 mm
Cutting Width3.03 mm
FinishUncoated
Hand of InsertAmbidextrous
Included Angle90 deg
Insert Size3M
Insert StyleGFN
ISO CodeGFN 3M IC20
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width3.03 mm
Additional Information
Standards/ApprovalISO 9001
Country of OriginIS
