Iscar ISCAR 6001320

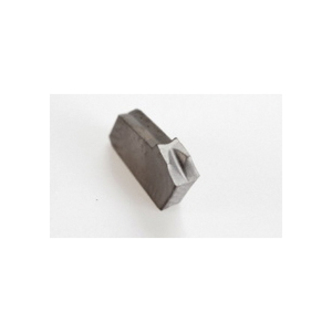

Iscar 6001320 SELF-GRIP Cut-Off/Parting Insert, 2J-6D Insert, GFR Insert, Material Grade: H, K, M, N, P, S, 2 mm W Cutting, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC20, Uncoated
Invoice description:
Gfr 2j - 6d Ic20
Factory Order

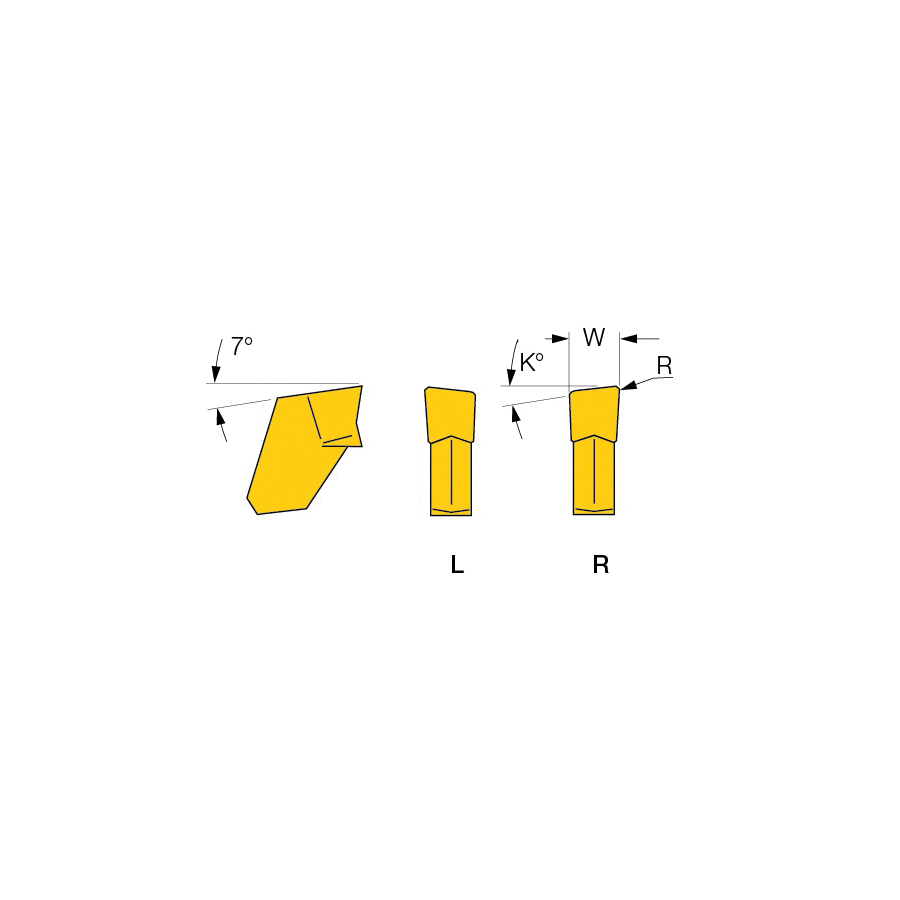

Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFR Insert, 2J-6D Insert, 2 mm Cutting Width, 6 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2 mm Width, J Chipbreaker, 0.16 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: GFR 2J-6D IC20, 90 deg Included Angle, Right Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, P, S
Features
- First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts
- Cutting edge with a positive rake, used at low-to-medium feeds
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
- An uncoated carbide grade
Specifications
ApplicationFor groove turning applications
ChipbreakerJ
Corner Radius0.16 mm
Cutting Width2 mm
FinishUncoated
Hand of InsertRight
Included Angle90 deg
Insert Size2J-6D
Insert StyleGFR
ISO CodeGFR 2J-6D IC20
Lead Angle6 deg
Lead Angle DirectionRight Hand
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width2 mm
Additional Information
Country of OriginIS
