Iscar ISCAR 6000286

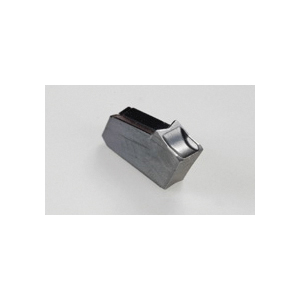

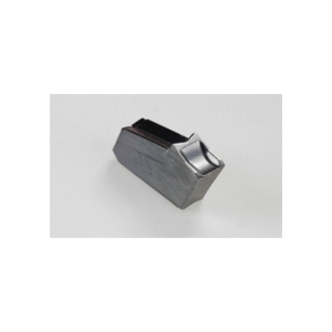

Iscar 6000286 SELF-GRIP Parting Insert, ANSI Code: GFN 3, GFN Insert, 7 deg Relief Angle, Manufacturers Grade: IC20
Invoice description:
Gfn 3 Ic20
Factory Order
Iscar Parting Insert, Series: SELF-GRIP, GFN Insert, 7 deg Relief Angle, 3.03 mm Width, 0.2 mm Corner Radius, Manufacturers Grade: IC20, ANSI Code: GFN 3, ISO Code: GFN-C
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity (except 7 and 12 mm with double cavity), negative land and shoulders, provides extra cutting-edge strength
- Medium-to-high feeds
Specifications
ANSI CodeGFN 3
Corner Radius0.2 mm
Insert StyleGFN
ISO CodeGFN-C
Manufacturers GradeIC20
Relief Angle7 deg
SeriesSELF-GRIP
Width3.03 mm
