GARR GARR 21264

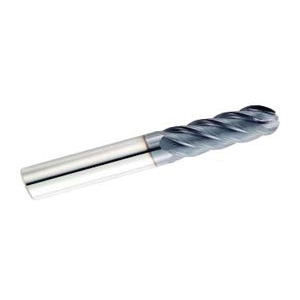

GARR 21264 545BA Ball End Center Cutting End Mill, 4 mm Dia Cutter, 12 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 50 mm OAL, AlTiN/X.CEED Coated
Factory Order
GARR End Mill, Ball End Center Cutting, Series: 545BA, 4 mm Diameter Cutter, 50 mm Overall Length, 12 mm Length of Cut, 4 Flutes, Helix Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Submicron Solid Carbide, AlTiN/X.CEED Coated
Features
- High performance tool for use in high Rockwell materials
- For hardened die mold, inconel and tool steels above 45 Rc
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationFor cutting high rockwell materials
Cutter Diameter4 mm
Cutting DirectionRight Hand
FinishAlTiN/X.CEED Coated
Flute TypeHelix
Helix Angle45 deg
Length of Cut12 mm
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length50 mm
Series545BA
Shank Diameter6 mm
TypeBall End Center Cutting
Specification Sheet
