Iscar ISCAR 5669384

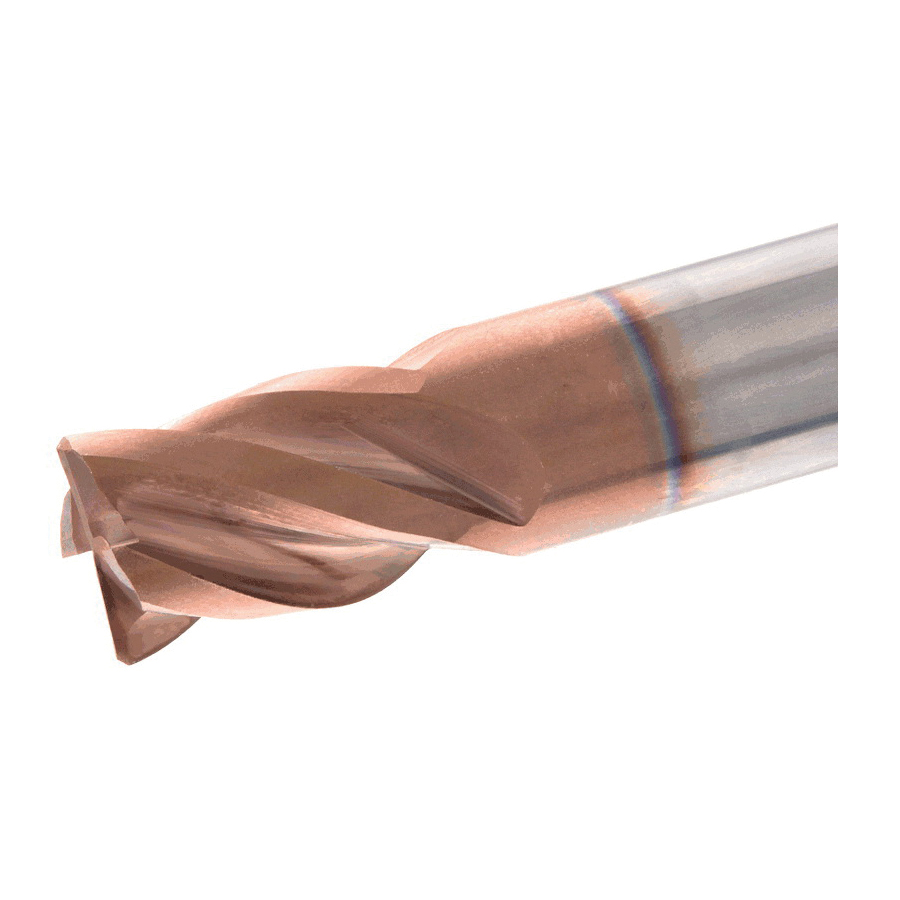

Iscar 5669384 SOLID MILL CHATTERFREE Corner Chamfer End Mill, 0.188 in Dia Cutter, 0.188 in Length of Cut, 4 Flutes, 0.188 in Dia Shank, 2 in OAL

Invoice description: Eci-h4s 188-188c188cfe2

UNSPSC: 27112803
Manufacturer PN: 5669384
$43.56 EA
Factory Order
Estimated to ship in 7 days
QTY:


Iscar Corner Chamfer End Mill, Series: SOLID MILL CHATTERFREE, 0.188 in Cutter Dia, 2 in Overall Length, 0.188 in Length of Cut, 4 Flutes, Spiral Flute, 0.188 in Shank Dia, Right Hand Cutting, 35/37 deg Helix Angle, Cylindrical Shank, Solid Carbide

  • Features

  • Short, 4-flute end mills with different helix (35 deg and 37 deg) and variable pitch for chatter dampening
  • Used for very high material removal rates roughing and finishing operations
  • Full slot milling - up to 1XD

Specifications

ApplicationMilling
Cutter Diameter0.188 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle35/37 deg
Length of Cut0.188 in
MaterialSolid Carbide
Number of Flutes4
Overall Length2 in
SeriesSOLID MILL CHATTERFREE
Shank Diameter0.188 in
Shank TypeCylindrical

Additional Information

Standards/ApprovalISO 13399
