Iscar ISCAR 5607706

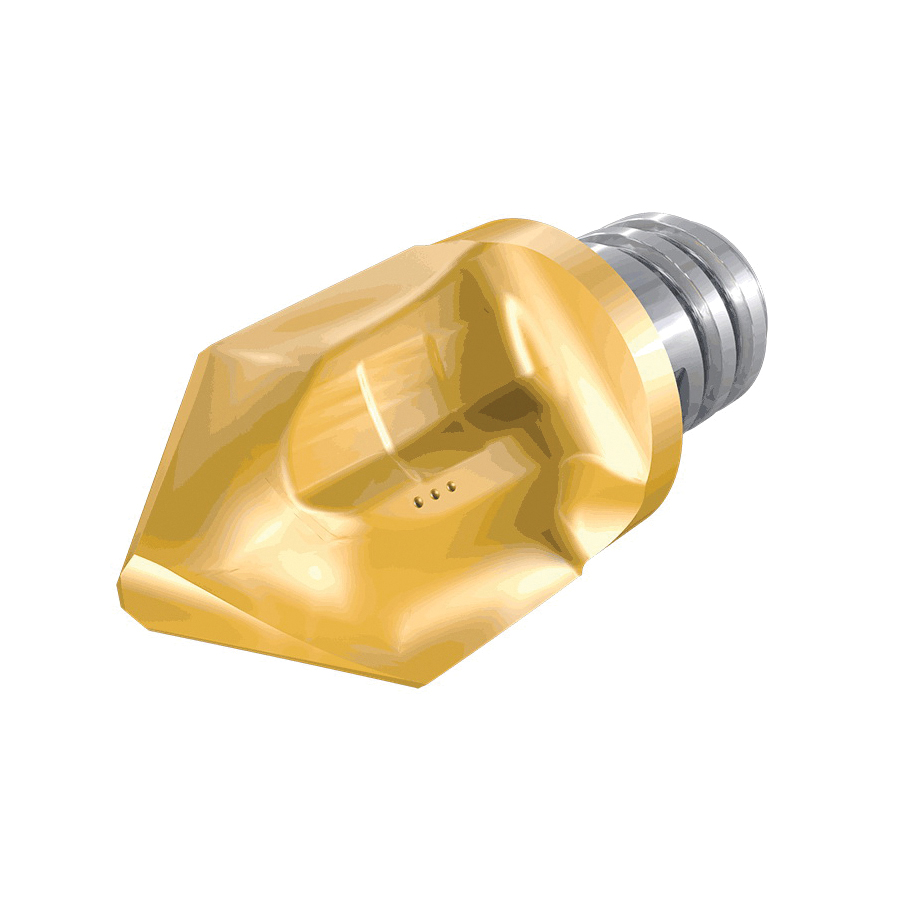

Iscar 5607706 MULTI-MASTER Exchangeable Drill Head, ANSI Code: MM HCD.375-080-2T06 IC908, 3/8 in Dia, PVD-TiAlN Coated, 140 deg Included, For Use With MM GRT, MM S-A, MM TS-A Cylindrical Shank, MM S-D and MM S-B Conical Shank, Manufacturers Grade: IC908
Factory Order
Iscar Drill Head, Exchangeable, Series: MULTI-MASTER, ANSI Code: MM HCD.375-080-2T06 IC908, 3/8 in Dia, 0.465 in Insert, 140 deg Included Angle, For Use With: MM GRT, MM S-A, MM TS-A Cylindrical Shank, MM S-D and MM S-B Conical Shank, Manufacturers Grade: IC908, Solid Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Features
- A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationChamfering, Countersinking, Milling, Spot Drilling and Slotting Applications
ANSI CodeMM HCD.375-080-2T06 IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Diameter3/8 in
FinishPVD-TiAlN Coated
Included Angle140 deg
Insert Size0.465 in
Manufacturers GradeIC908
MaterialSolid Carbide
SeriesMULTI-MASTER
Suitable For Use WithMM GRT, MM S-A, MM TS-A Cylindrical Shank, MM S-D and MM S-B Conical Shank
TypeExchangeable
