Iscar ISCAR 5504846

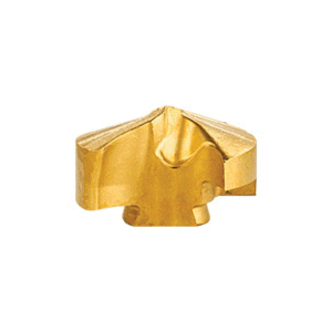

Iscar 5504846 CHAMDRILL Exchangeable Drill Head, ANSI Code: IDI 0512-SG IC908, 0.512 in Dia, PVD-TiAlN Coated, #13 Insert Seat, 140 deg Included, For Use With DCM-3D, DCM-5D, DCM-3.5D, DCM-8D and DCT Indexable Head Drill, Manufacturers Grade: IC908
Invoice description:
Idi 0512-sg Ic908
Factory Order
Iscar Drill Head, Exchangeable, Series: CHAMDRILL, ANSI Code: IDI 0512-SG IC908, 0.512 in Dia, 0.236 in Insert, #13 Insert Seat, 140 deg Included Angle, For Use With: DCM-3D, DCM-5D, DCM-3.5D, DCM-8D and DCT Indexable Head Drill, Manufacturers Grade: IC908, Through Coolant: No, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Features
- A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationDrilling and Hole Making Applications
ANSI CodeIDI 0512-SG IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Diameter0.512 in
FinishPVD-TiAlN Coated
Included Angle140 deg
Insert Seat Size#13
Insert Size0.236 in
Manufacturers GradeIC908
MaterialCarbide
SeriesCHAMDRILL
Suitable For Use WithDCM-3D, DCM-5D, DCM-3.5D, DCM-8D and DCT Indexable Head Drill
Through Coolant (Yes/No)No
TypeExchangeable
Additional Information
Country of OriginIL
