Iscar ISCAR 3302978

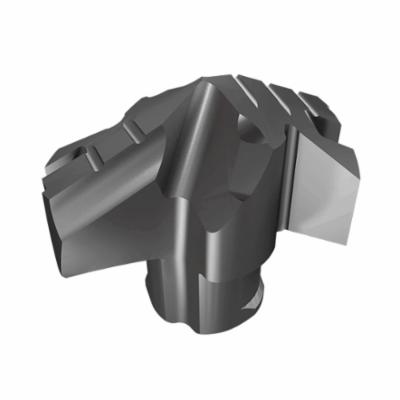

Iscar 3302978 SUMOCHAM Exchangeable Drill Head, ANSI Code: ICG 0669 IC908, 0.669 in Dia, PVD-TiAlN Coated, #17 Insert Seat, 130 deg Included, Manufacturers Grade: IC908, PVD-TiAlN Coated
Invoice description:
Icg 0669 Ic908
Factory Order
Iscar Drill Head, Exchangeable, Series: SUMOCHAM, ANSI Code: ICG 0669 IC908, 0.669 in Dia, 0.378 in Insert, #17 Insert Seat, 130 deg Included Angle, For Use With: DCN R-3D, DCN R-1.5D, DCN A-1.5D, DCNS-3D, DCNT Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill, Manufacturers Grade: IC908, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Features
- Exchangeable chip splitting drilling heads for stainless and alloyed steel
- Feature chip splitting notches on the cutting edge and an impressed chip breaker
- A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationHole Making Applications
ANSI CodeICG 0669 IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Diameter0.669 in
FinishPVD-TiAlN Coated
Included Angle130 deg
Insert Seat Size#17
Insert Size0.378 in
Manufacturers GradeIC908
MaterialCarbide
SeriesSUMOCHAM
Suitable For Use WithDCN R-3D, DCN R-1.5D, DCN A-1.5D, DCNS-3D, DCNT Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill
TypeExchangeable
