Iscar ISCAR 5567943

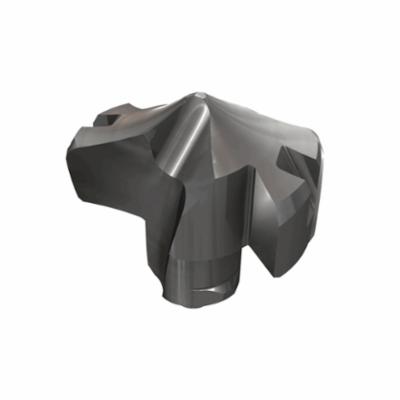

Iscar 5567943 SUMOCHAMIQ Exchangeable Self-Centering Drill Head, ANSI Code: HCP 0421-IQ IC908, 0.421 in Dia, PVD-TiAlN Coated, #10 Insert Seat, For Use With DCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill
Invoice description:
Hcp 0421-iq Ic908
Factory Order
Iscar Drill Head, Exchangeable Self-Centering, Series: SUMOCHAMIQ, ANSI Code: HCP 0421-IQ IC908, 0.421 in Dia, 0.244 in Insert, #10 Insert Seat, For Use With: DCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill, Manufacturers Grade: IC908, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Features
- Self-centering drilling heads with a unique cutting edge profile which enables drilling up to 12XD without requiring a pilot hole operation
- A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationHole Making Applications
ANSI CodeHCP 0421-IQ IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Diameter0.421 in
FinishPVD-TiAlN Coated
Insert Seat Size#10
Insert Size0.244 in
Manufacturers GradeIC908
MaterialCarbide
SeriesSUMOCHAMIQ
Suitable For Use WithDCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill
TypeExchangeable Self-Centering
