Iscar ISCAR 5567170

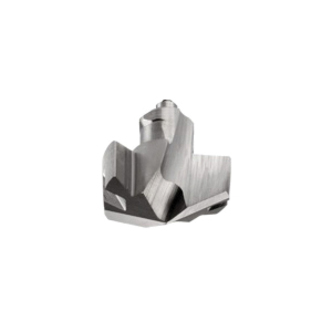

Iscar 5567170 SUMOCHAM Exchangeable DCN Drill Head, 11 Insert Seat, 6.6 mm Inscribed Circle, 140 deg Included, IC907 Grade

Invoice description: Icm 0437 Ic907 2/pk 7/16" Sumocam Insert

UNSPSC: 23242105
Manufacturer PN: 5567170
$127.85 EA
Factory Order
Estimated to ship in 7 days
QTY:


Iscar DCN Drill Head, Exchangeable, Series: SUMOCHAM, 11.1 mm Insert, 11 Insert Seat, 140 deg Included Angle, 6.6 mm Inscribed Circle, Grade IC907, Applicable Materials: Stainless Steel and High Temperature Alloy

  • Features

  • The drill head features a T-land on the cutting edge, available in increments of 0.1 mm

Specifications

ApplicationHole Making and Drilling
Applicable MaterialsStainless Steel and High Temperature Alloy
GradeIC907
Included Angle140 deg
Inscribed Circle6.6 mm
Insert Seat Size11
Insert Size11.1 mm
SeriesSUMOCHAM
TypeExchangeable

Additional Information

Standards/ApprovalISO 13399
