Iscar ISCAR 5509716

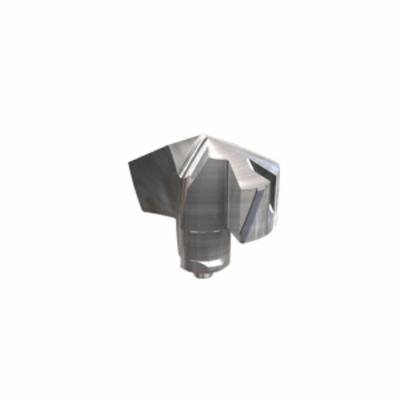

Iscar 5509716 SUMOCHAM Exchangeable Double Margin Drill Head, ANSI Code: ICK 0386-2M IC908, 0.386 in Dia, PVD-TiAlN Coated, #9 Insert Seat, 140 deg Included, For Use With DCN R-3D, DCN A-1.5D, DCN A-3D, DCNS-3D, DCNS-5D and DCNT Indexable Head Drill
Invoice description:
Ick 0386-2m Ic908
Factory Order

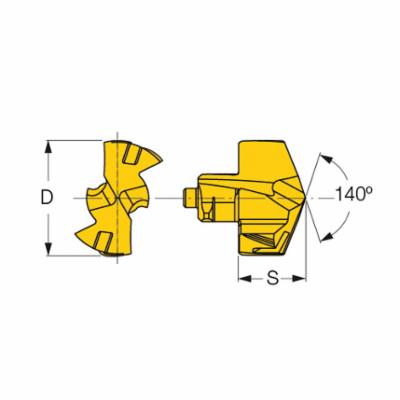

Iscar Drill Head, Exchangeable Double Margin, Series: SUMOCHAM, ANSI Code: ICK 0386-2M IC908, 0.386 in Dia, 0.228 in Insert, #9 Insert Seat, 140 deg Included Angle, For Use With: DCN R-3D, DCN A-1.5D, DCN A-3D, DCNS-3D, DCNS-5D and DCNT Indexable Head Drill, Manufacturers Grade: IC908, Through Coolant: Yes, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Features
- Double margin drilling heads for DCN drills for machining cast iron with high surface finish
- Can provide high surface finish of up to 64 micro in Ra hole cylindricity and straightness of up to 0.002 in
- A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationHole Making Applications
ANSI CodeICK 0386-2M IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Diameter0.386 in
FinishPVD-TiAlN Coated
Included Angle140 deg
Insert Seat Size#9
Insert Size0.228 in
Manufacturers GradeIC908
MaterialCarbide
SeriesSUMOCHAM
Suitable For Use WithDCN R-3D, DCN A-1.5D, DCN A-3D, DCNS-3D, DCNS-5D and DCNT Indexable Head Drill
Through Coolant (Yes/No)Yes
TypeExchangeable Double Margin
Additional Information
Country of OriginIL
