Iscar ISCAR 5509494

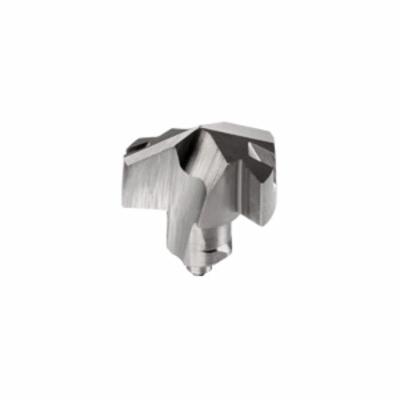

Iscar 5509494 SUMOCHAM Exchangeable Drill Head, ANSI Code: ICM 0736 IC908, 0.736 in Dia, PVD-TiAlN Coated, #18 Insert Seat, 140 deg Included, For Use With DCN R-3D, DCN R-1.5D, DCN A-1.5D, DCN A-5D and DCNS-3D Indexable Head Drill, PVD-TiAlN Coated

Invoice description: Icm 0736 Ic908

UNSPSC: 23241600
Manufacturer PN: 5509494
$182.80 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Drill Head, Exchangeable, Series: SUMOCHAM, ANSI Code: ICM 0736 IC908, 0.736 in Dia, 0.413 in Insert, #18 Insert Seat, 140 deg Included Angle, For Use With: DCN R-3D, DCN R-1.5D, DCN A-1.5D, DCN A-5D and DCNS-3D Indexable Head Drill, Manufacturers Grade: IC908, Through Coolant: Yes, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel

  • Features

  • Exchangeable DCN drill heads for stainless steel and high temperature alloys
  • The drill head features a T-land on the cutting edge
  • A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
  • Provides high wear and oxidation resistance
  • Recommended for a very wide range of materials applications and machining conditions

Specifications

ApplicationHole Making Applications
ANSI CodeICM 0736 IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel

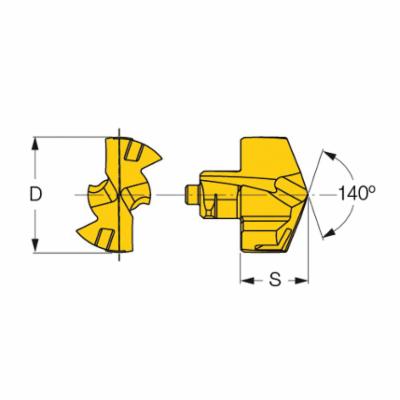

Diameter0.736 in
FinishPVD-TiAlN Coated
Included Angle140 deg
Insert Seat Size#18
Insert Size0.413 in
Manufacturers GradeIC908
MaterialCarbide
SeriesSUMOCHAM
Suitable For Use WithDCN R-3D, DCN R-1.5D, DCN A-1.5D, DCN A-5D and DCNS-3D Indexable Head Drill
Through Coolant (Yes/No)Yes
TypeExchangeable
