Iscar ISCAR 5509472

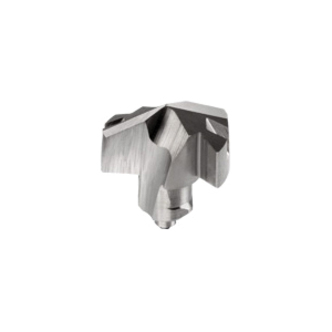

Iscar 5509472 SUMOCHAM Exchangeable Drill Head, ANSI Code: ICM 0311 IC908, 0.311 in Dia, PVD-TiAlN Coated, #7 Insert Seat, 140 deg Included, For Use With DCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill

UNSPSC: 23241600
Manufacturer PN: 5509472
$111.00 EA
Factory Order
Estimated to ship in 14 days
QTY:

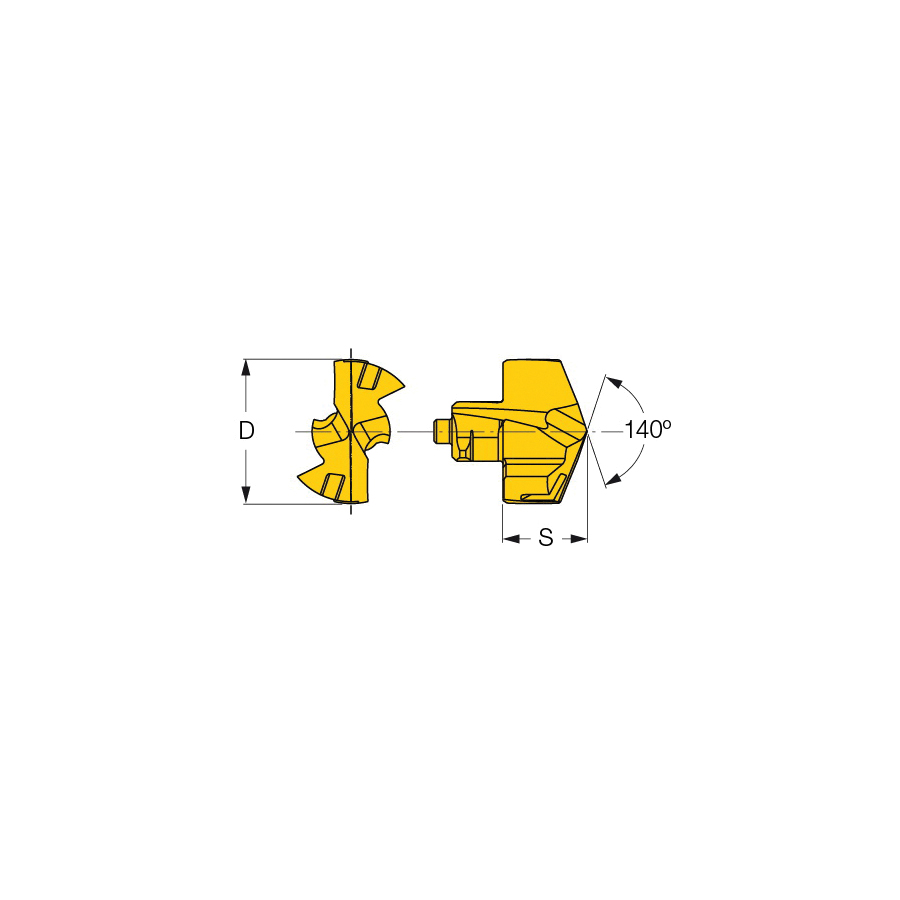

Iscar Drill Head, Exchangeable, Series: SUMOCHAM, ANSI Code: ICM 0311 IC908, 0.311 in Dia, 0.181 in Insert, #7 Insert Seat, 140 deg Included Angle, For Use With: DCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill, Manufacturers Grade: IC908, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel

  • Features

  • Exchangeable DCN drill heads for stainless steel and high temperature alloys
  • The drill head features a T-land on the cutting edge
  • A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
  • Provides high wear and oxidation resistance
  • Recommended for a very wide range of materials applications and machining conditions

Specifications

ApplicationHole Making Applications
ANSI CodeICM 0311 IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Diameter0.311 in
FinishPVD-TiAlN Coated
Included Angle140 deg
Insert Seat Size#7
Insert Size0.181 in
Manufacturers GradeIC908
MaterialCarbide
SeriesSUMOCHAM
Suitable For Use WithDCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill
TypeExchangeable
