Iscar ISCAR 5509098

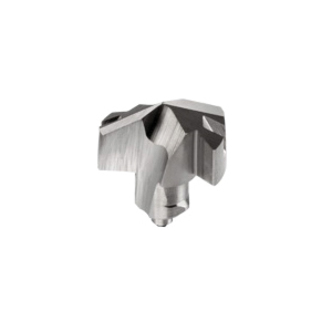

Iscar 5509098 SUMOCHAM Exchangeable Drill Head, ANSI Code: ICM 0815 IC908, 0.815 in Dia, PVD-TiAlN Coated, #20 Insert Seat, 140 deg Included, For Use With DCN R-3D, DCN R-1.5D, DCN A-1.5D, DCN A-5D and DCNS-3D Indexable Head Drill, PVD-TiAlN Coated

Invoice description: Icm 0815 Ic908

UNSPSC: 23241600
Manufacturer PN: 5509098
$204.32 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Drill Head, Exchangeable, Series: SUMOCHAM, ANSI Code: ICM 0815 IC908, 0.815 in Dia, 0.457 in Insert, #20 Insert Seat, 140 deg Included Angle, For Use With: DCN R-3D, DCN R-1.5D, DCN A-1.5D, DCN A-5D and DCNS-3D Indexable Head Drill, Manufacturers Grade: IC908, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel

  • Features

  • Exchangeable DCN drill heads for stainless steel and high temperature alloys
  • The drill head features a T-land on the cutting edge
  • A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
  • Provides high wear and oxidation resistance
  • Recommended for a very wide range of materials applications and machining conditions

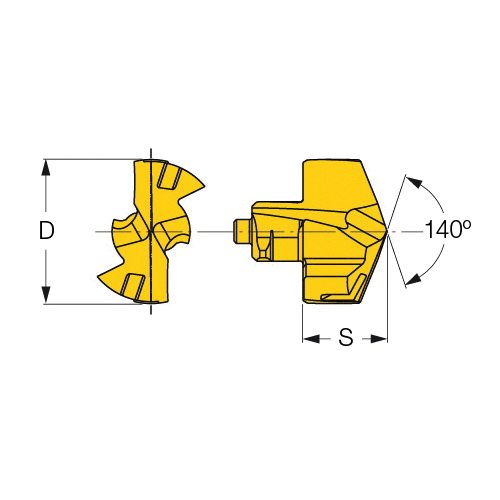

Specifications

ApplicationDrilling and Hole Making Applications
ANSI CodeICM 0815 IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Diameter0.815 in
FinishPVD-TiAlN Coated
Included Angle140 deg
Insert Seat Size#20
Insert Size0.457 in
Manufacturers GradeIC908
MaterialCarbide
SeriesSUMOCHAM
Suitable For Use WithDCN R-3D, DCN R-1.5D, DCN A-1.5D, DCN A-5D and DCNS-3D Indexable Head Drill
TypeExchangeable

Additional Information

Country of OriginIL
