Iscar ISCAR 5508771

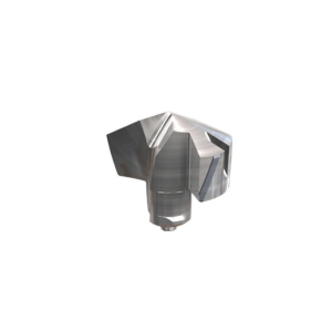

Iscar 5508771 SUMOCHAM Exchangeable Double Margin Drill Head, ANSI Code: ICP 0315-2M IC908, 0.315 in Dia, PVD-TiAlN Coated, #8 Insert Seat, 140 deg Included, For Use With DCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D and DCNT Indexable Head Drill
Invoice description:
Icp 0315-2m Ic908
Factory Order

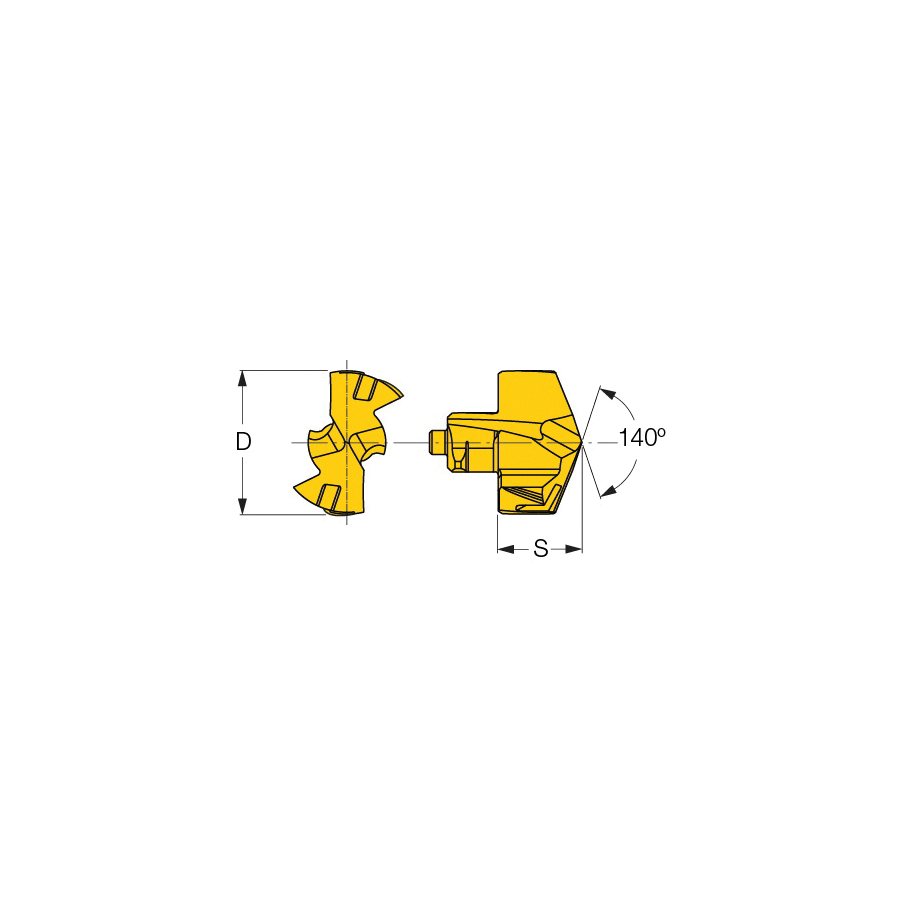

Iscar Drill Head, Exchangeable Double Margin, Series: SUMOCHAM, ANSI Code: ICP 0315-2M IC908, 0.315 in Dia, 0.213 in Insert, #8 Insert Seat, 140 deg Included Angle, For Use With: DCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D and DCNT Indexable Head Drill, Manufacturers Grade: IC908, Through Coolant: Yes, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Steel and Stainless Steel
Features
- Double margin drilling heads for DCN drills for machining carbon and alloy steel with high surface finish results (up to 64 micro in Ra)
- Can provide high surface finish of up to 64 micro in Ra hole cylindricity and straightness of up to 0.002 in
- A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationDrilling and Hole Making Applications
ANSI CodeICP 0315-2M IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Steel and Stainless Steel
Diameter0.315 in
FinishPVD-TiAlN Coated
Included Angle140 deg
Insert Seat Size#8
Insert Size0.213 in
Manufacturers GradeIC908
MaterialCarbide
SeriesSUMOCHAM
Suitable For Use WithDCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D and DCNT Indexable Head Drill
Through Coolant (Yes/No)Yes
TypeExchangeable Double Margin
Additional Information
Country of OriginIS
