Iscar ISCAR 5508599

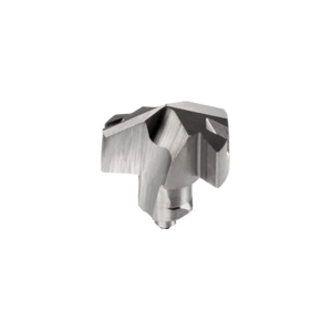

Iscar 5508599 SUMOCHAM Exchangeable Drill Head, ANSI Code: ICP 0732 IC908, 0.732 in Dia, PVD-TiAlN Coated, #18 Insert Seat, 140 deg Included, For Use With DCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill
Invoice description:
Icp 0732 Ic908
Factory Order
Iscar Drill Head, Exchangeable, Series: SUMOCHAM, ANSI Code: ICP 0732 IC908, 0.732 in Dia, 0.413 in Insert, #18 Insert Seat, 140 deg Included Angle, For Use With: DCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill, Manufacturers Grade: IC908, Through Coolant: Yes, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Steel and Stainless Steel
Features
- Exchangeable DCN drill heads for carbon and alloy steel
- The drill head is designed with a honed cutting edge
- A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationHole Making Applications
ANSI CodeICP 0732 IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Steel and Stainless Steel

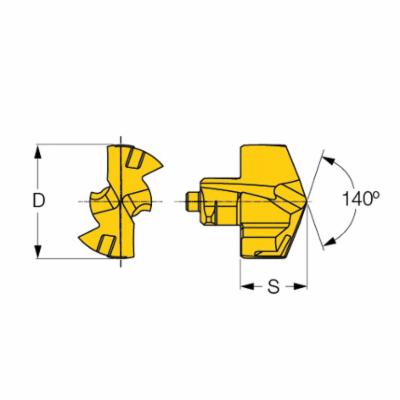

Diameter0.732 in
FinishPVD-TiAlN Coated
Included Angle140 deg
Insert Seat Size#18
Insert Size0.413 in
Manufacturers GradeIC908
MaterialCarbide
SeriesSUMOCHAM
Suitable For Use WithDCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill
Through Coolant (Yes/No)Yes
TypeExchangeable
Additional Information
Country of OriginIL
