Iscar ISCAR 5506892

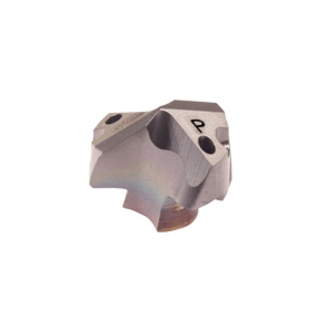

Iscar 5506892 CHAMDRILLJET Exchangeable Drill Head, ANSI Code: IDP 0764 IC908, 0.764 in Dia, PVD-TiAlN Coated, #19 Insert Seat, 140 deg Included, For Use With DSM-3D, DSM-5D and DSM-1.5D Indexable Head Drill, Manufacturers Grade: IC908, PVD-TiAlN Coated

UNSPSC: 23241600
Manufacturer PN: 5506892
$140.98 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Drill Head, Exchangeable, Series: CHAMDRILLJET, ANSI Code: IDP 0764 IC908, 0.764 in Dia, 0.425 in Insert, #19 Insert Seat, 140 deg Included Angle, For Use With: DSM-3D, DSM-5D and DSM-1.5D Indexable Head Drill, Manufacturers Grade: IC908, Through Coolant: Yes, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel

  • Features

  • Exchangeable drilling bits with coolant holes, for stainless steel and high temperature alloys
  • The drill head features a T-land on the cutting edge
  • A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
  • Provides high wear and oxidation resistance
  • Recommended for a very wide range of materials applications and machining conditions

Specifications

ApplicationHole Making Applications
ANSI CodeIDP 0764 IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel

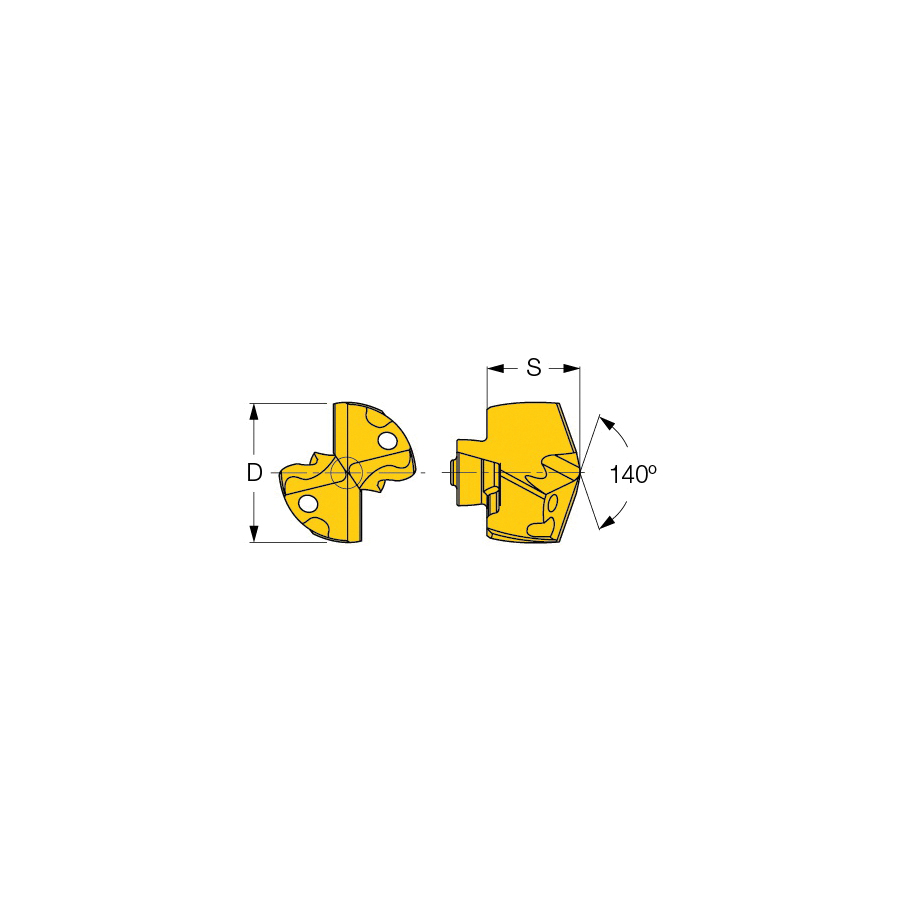

Diameter0.764 in
FinishPVD-TiAlN Coated
Included Angle140 deg
Insert Seat Size#19
Insert Size0.425 in
Manufacturers GradeIC908
MaterialCarbide
SeriesCHAMDRILLJET
Suitable For Use WithDSM-3D, DSM-5D and DSM-1.5D Indexable Head Drill
Through Coolant (Yes/No)Yes
TypeExchangeable
