Iscar ISCAR 5506748

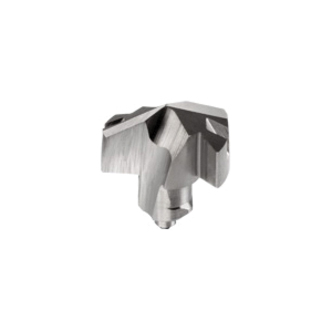

Iscar 5506748 SUMOCHAM Exchangeable Drill Head, ANSI Code: ICK 0394 IC908, 0.394 in Dia, PVD-TiAlN Coated, #10 Insert Seat, 140 deg Included, For Use With DCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill
Factory Order
Iscar Drill Head, Exchangeable, Series: SUMOCHAM, ANSI Code: ICK 0394 IC908, 0.394 in Dia, 0.244 in Insert, #10 Insert Seat, 140 deg Included Angle, For Use With: DCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill, Manufacturers Grade: IC908, Through Coolant: Yes, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Features
- The drill head is produced with a ground chamfer and a honed cutting edge
- A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationGroove Turning and Parting Applications
ANSI CodeICK 0394 IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel

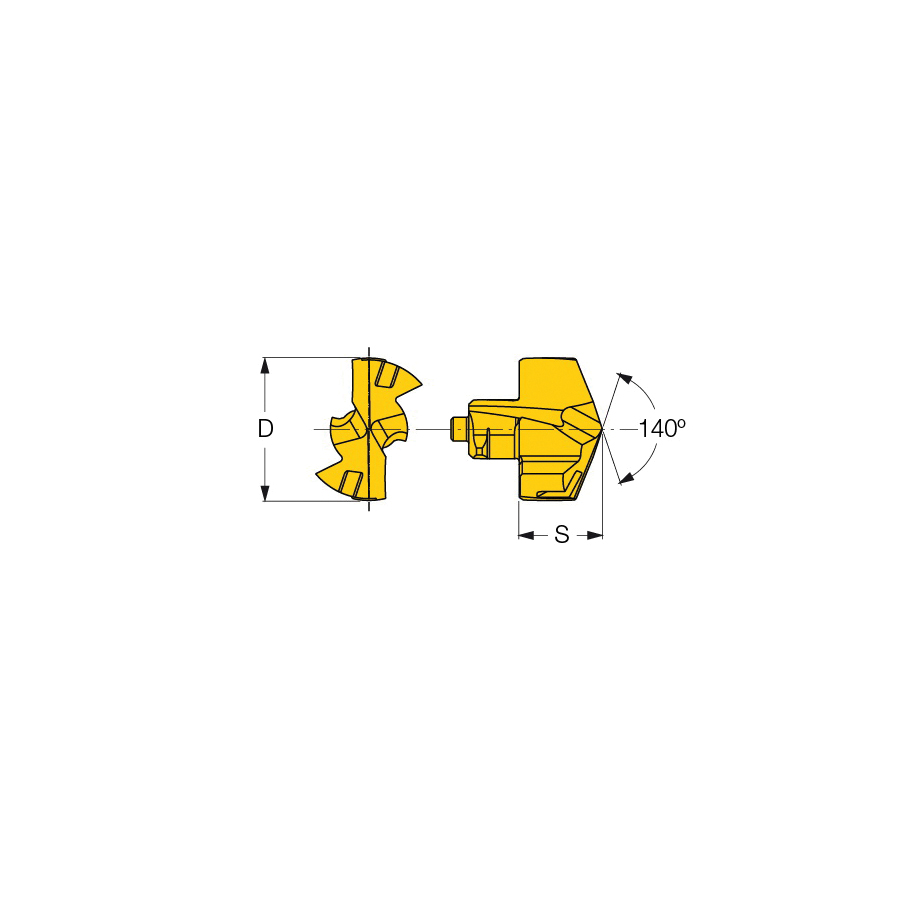

Diameter0.394 in
FinishPVD-TiAlN Coated
Included Angle140 deg
Insert Seat Size#10
Insert Size0.244 in
Manufacturers GradeIC908
MaterialCarbide
SeriesSUMOCHAM
Suitable For Use WithDCN R-3D, DCN R-1.5D, DCN A-5D, DCNS-5D Indexable Head Drill and MNCNT-T2 Modular Shank GunDrill
Through Coolant (Yes/No)Yes
TypeExchangeable
