Iscar ISCAR 5505668

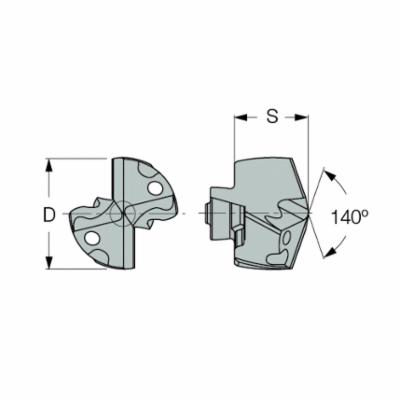

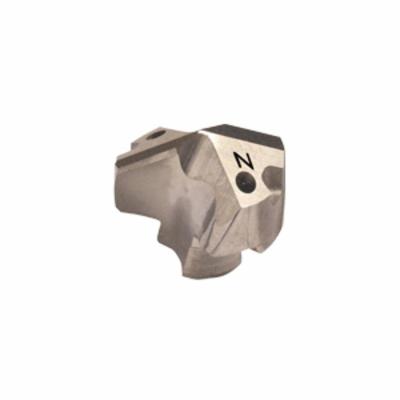

Iscar 5505668 CHAMDRILLJET Exchangeable Drill Head, ANSI Code: IDN 0484 IC08, 0.484 in Dia, Uncoated, #12 Insert Seat, 140 deg Included, For Use With DSM-3D, DSM-5D, DSM-1.5D Indexable Head Drill and DSM-RGH Regrinding Holder, Manufacturers Grade: IC08

UNSPSC: 23241600
Manufacturer PN: 5505668
$107.66 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Drill Head, Exchangeable, Series: CHAMDRILLJET, ANSI Code: IDN 0484 IC08, 0.484 in Dia, 0.307 in Insert, #12 Insert Seat, 140 deg Included Angle, For Use With: DSM-3D, DSM-5D, DSM-1.5D Indexable Head Drill and DSM-RGH Regrinding Holder, Manufacturers Grade: IC08, Through Coolant: Yes, Carbide, Uncoated, Applicable Materials: Aluminum, High Temperature Alloy and Non-Ferrous Metal

  • Features

  • Exchangeable drilling bits with coolant holes, for aluminum
  • Sharp cutting edge and polished flutes
  • An uncoated fine grain, carbide grade
  • Used mainly for aluminum and for high temperature alloys at low to medium cutting speed

Specifications

ApplicationHole Making Applications
ANSI CodeIDN 0484 IC08
Applicable MaterialsAluminum, High Temperature Alloy and Non-Ferrous Metal
Diameter0.484 in
FinishUncoated
Included Angle140 deg
Insert Seat Size#12
Insert Size0.307 in
Manufacturers GradeIC08
MaterialCarbide
SeriesCHAMDRILLJET
Suitable For Use WithDSM-3D, DSM-5D, DSM-1.5D Indexable Head Drill and DSM-RGH Regrinding Holder
Through Coolant (Yes/No)Yes
TypeExchangeable
