Iscar ISCAR 5504849

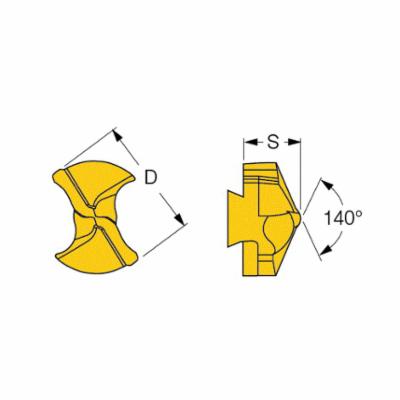

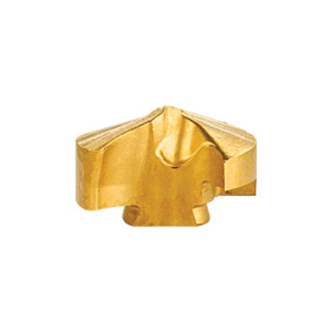

Iscar 5504849 CHAMDRILL Exchangeable Drill Head, ANSI Code: IDI 0591-SG IC908, 0.591 in Dia, PVD-TiAlN Coated, #15 Insert Seat, 140 deg Included, For Use With DCM-3D, DCM-5D, DCM-3.5D and DCM-8D Indexable Head Drill, Manufacturers Grade: IC908

UNSPSC: 23241600
Manufacturer PN: 5504849
$118.52 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Drill Head, Exchangeable, Series: CHAMDRILL, ANSI Code: IDI 0591-SG IC908, 0.591 in Dia, 0.291 in Insert, #15 Insert Seat, 140 deg Included Angle, For Use With: DCM-3D, DCM-5D, DCM-3.5D and DCM-8D Indexable Head Drill, Manufacturers Grade: IC908, Through Coolant: No, Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel

  • Features

  • A hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
  • Provides high wear and oxidation resistance
  • Recommended for a very wide range of materials applications and machining conditions

Specifications

ApplicationHole Making Applications
ANSI CodeIDI 0591-SG IC908
Applicable MaterialsCast Iron, Hard Material, High Temperature Alloy, Stainless Steel and Steel
Diameter0.591 in
FinishPVD-TiAlN Coated
Included Angle140 deg
Insert Seat Size#15
Insert Size0.291 in
Manufacturers GradeIC908
MaterialCarbide
SeriesCHAMDRILL
Suitable For Use WithDCM-3D, DCM-5D, DCM-3.5D and DCM-8D Indexable Head Drill
Through Coolant (Yes/No)No
TypeExchangeable
