GARR GARR 18153

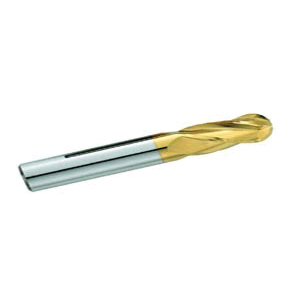

GARR 18153 330MT Ball Nose Center Cutting Standard Length End Mill, 1/4 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, TiN Coated

Invoice description: Bem 1/4x3/4locx1/4x2-1/2 4fl Tin

UNSPSC: 27112803
Manufacturer PN: 18153
$27.88 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Standard Length, Series: 330MT, 1/4 in Cutter Dia, 2-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Helix Flute, 1/4 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide, TiN Coated

  • Features

  • Improved lubricity - 10% faster than uncoated
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishTiN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut3/4 in
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length2-1/2 in
Series330MT
Shank Diameter1/4 in
TypeBall Nose Center Cutting Standard Length

Additional Information

Country of OriginUS
