GARR GARR 18140

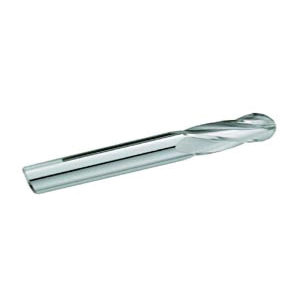

GARR 18140 330M Ball Nose Center Cutting Standard Length End Mill, 15/64 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, Uncoated

Invoice description: Bem 15/64x3/4locx1/4x 2-1/2 4fl N/c

UNSPSC: 27112803
Manufacturer PN: 18140
$24.88 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Standard Length, Series: 330M, 15/64 in Diameter Cutter, 2-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Helix Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, Uncoated

  • Features

  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter15/64 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeHelix
Helix Angle30 deg
Length of Cut3/4 in
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length2-1/2 in
Series330M
Shank Diameter1/4 in
TypeBall Nose Center Cutting Standard Length

Additional Information

Country of OriginUS
