GARR GARR 18104

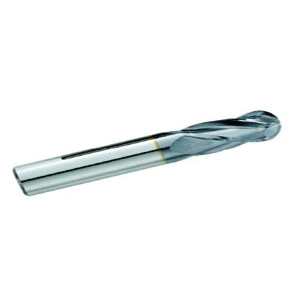

GARR 18104 330MC Ball Nose Center Cutting Standard Length Ball End Mill, 11/64 in Dia Cutter, 9/16 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2 in OAL, TiCN Coated

Invoice description: Bem 11/64x9/16locx3/16x2 4fl Ticn

UNSPSC: 27112803
Manufacturer PN: 18104
$24.40 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR Ball End Mill, Center Cutting Single End Standard Length, Series: 330MC, 11/64 in Diameter Cutter, 2 in Overall Length, 9/16 in Length of Cut, 4 Flutes, Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Solid Submicron Grain Carbide, TiCN Coated

  • Features

  • Improved lubricity and abrasion resistance
  • Up to 25% faster than uncoated
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter11/64 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut9/16 in
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length2 in
Series330MC
Shank Diameter3/16 in
TypeBall Nose Center Cutting Standard Length

Additional Information

Country of OriginUS
