GARR GARR 18030

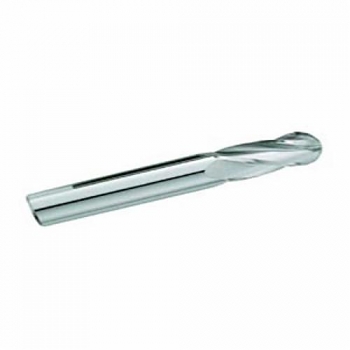

GARR 18030 330M Ball End Center Cutting Standard Length End Mill, 1/16 in Dia Cutter, 1/4 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated

Invoice description: Bem 1/16x1/4locx1/8x 1-1/2 4fl N/c

UNSPSC: 23242511
Manufacturer PN: 18030
$16.80 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Standard Length, Series: 330M, 1/16 in Diameter Cutter, 1-1/2 in Overall Length, 1/4 in Length of Cut, 4 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-1/4 in Shank Length, Solid Submicron Carbide, Uncoated

  • Features

  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter1/16 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1/4 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length1-1/2 in
Series330M
Shank Diameter1/8 in
Shank Length1-1/4 in
TypeBall End Center Cutting Standard Length

Additional Information

Country of OriginUS
