GARR GARR 18014

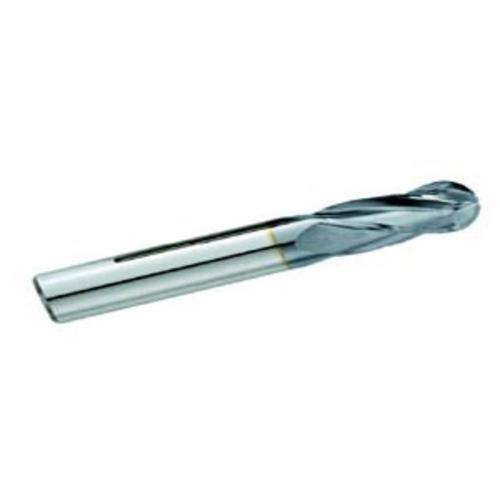

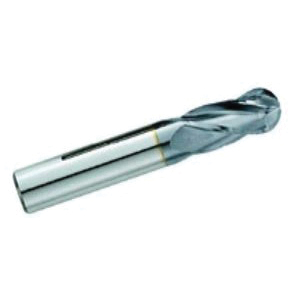

GARR 18014 330MC Ball End Center Cutting Single End Standard Length End Mill, 1/32 in Dia Cutter, 3/32 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiCN Coated
In stock
(3)
GARR End Mill, Ball End Center Cutting Single End Standard Length, Series: 330MC, 1/32 in Cutter Dia, 1-1/2 in Overall Length, 3/32 in Length of Cut, 4 Flutes, Spiral Flute, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 1-13/32 in Shank Length, Solid Submicron Carbide, TiCN Coated
Features
- Improved lubricity and abrasion resistance
- Up to 25% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
Cutter Diameter1/32 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/32 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length1-1/2 in
Series330MC
Shank Diameter1/8 in
Shank Length1-13/32 in
TypeBall End Center Cutting Single End Standard Length
Specification Sheet
