GARR GARR 17097

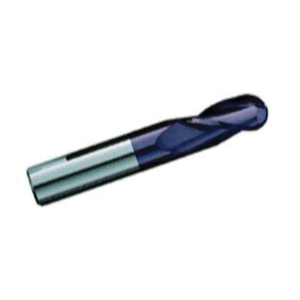

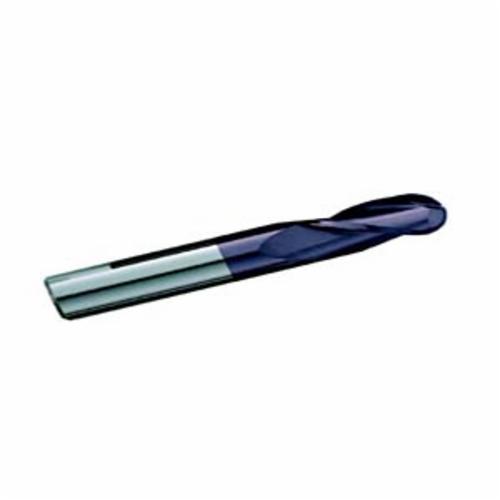

GARR 17097 323MA Ball End Center Cutting Single End Standard Length End Mill, 5/32 in Dia Cutter, 9/16 in Length of Cut, 3 Flutes, 3/16 in Dia Shank, 2 in OAL, TiALN Coated

Invoice description: Bem 5/32x9/16locx3/16x2 3fl Tialn

UNSPSC: 23242511
Manufacturer PN: 17097
$24.78 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Single End Standard Length, Series: A1249XPL, 5/32 in Cutter Dia, 2 in Overall Length, 9/16 in Length of Cut, 3 Flutes, Spiral Flute, 3/16 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 1-7/16 in Shank Length, Solid Submicron Carbide, TiALN Coated

  • Features

  • Up to 40% faster than uncoated
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter5/32 in
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut9/16 in
MaterialSolid Submicron Carbide
Number of Flutes3
Overall Length2 in
Series323MA
Shank Diameter3/16 in
Shank Length1-7/16 in
TypeBall End Center Cutting Single End Standard Length

Additional Information

Country of OriginUS
