GARR GARR 17087

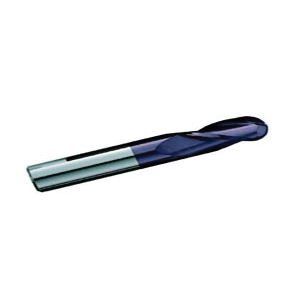

GARR 17087 323MA Ball End Center Cutting Standard Length End Mill, 9/64 in Dia Cutter, 9/16 in Length of Cut, 3 Flutes, 3/16 in Dia Shank, 2 in OAL, TiAlN Coated

Invoice description: Bem 9/64x9/16locx3/16x2 3fl Tialn

UNSPSC: 27112803
Manufacturer PN: 17087
$24.78 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Standard Length, Series: 323MA, 9/64 in Cutter Dia, 2 in Overall Length, 9/16 in Length of Cut, 3 Flutes, Helix Flute, 3/16 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide, TiAlN Coated

  • Features

  • Up to 40% faster than uncoated
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter9/64 in
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut9/16 in
MaterialSubmicron Solid Carbide
Number of Flutes3
Overall Length2 in
Series323MA
Shank Diameter3/16 in
TypeBall End Center Cutting Standard Length

Additional Information

Country of OriginUS
