GARR GARR 17064

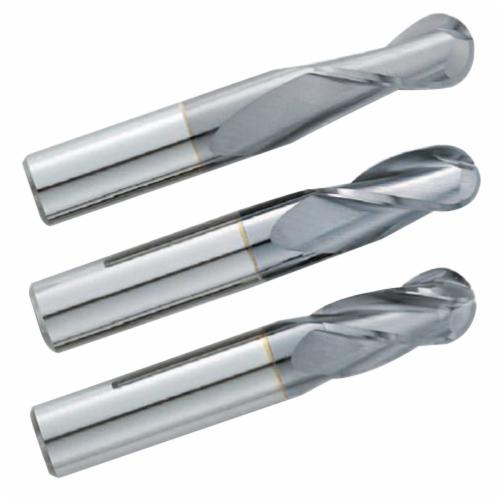

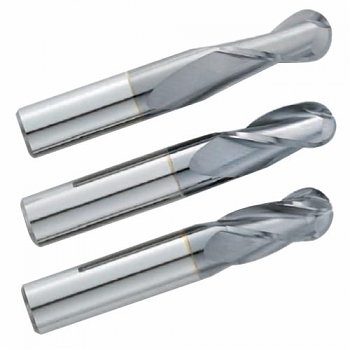

GARR 17064 323MC Ball End Center Cutting Single End Standard Length End Mill, 7/64 in Dia Cutter, 3/8 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiCN Coated

Invoice description: Bem 7/64x3/8locx1/8x 1-1/2 3fl Ticn

UNSPSC: 23242511
Manufacturer PN: 17064
$19.04 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Single End Standard Length, Series: 323MC, 7/64 in Diameter Cutter, 1-1/2 in Overall Length, 3/8 in Length of Cut, 3 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-1/8 in Shank Length, Solid Submicron Carbide, TiCN Coated

  • Features

  • Improved lubricity and abrasion resistance
  • Up to 25% faster than uncoated
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter7/64 in
Cutting DirectionRight Hand
FinishTiCN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/8 in
MaterialSolid Submicron Carbide
Number of Flutes3
Overall Length1-1/2 in
Series323MC
Shank Diameter1/8 in
Shank Length1-1/8 in
TypeBall End Center Cutting Single End Standard Length

Additional Information

Country of OriginUS
