GARR GARR 17060

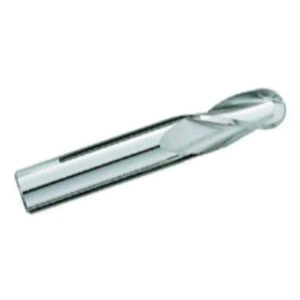

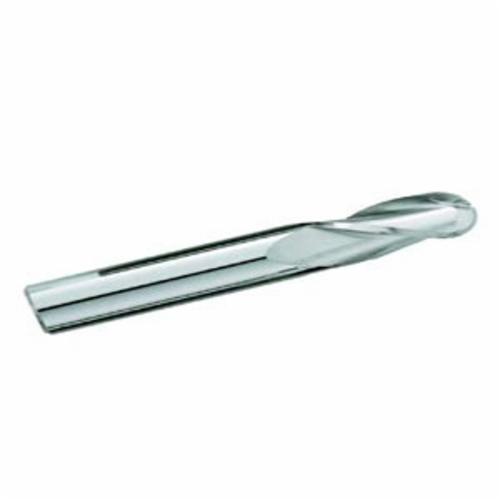

GARR 17060 323M Ball End Center Cutting Standard Length End Mill, 7/64 in Dia Cutter, 3/8 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated

Invoice description: Bem 7/64x3/8locx1/8x 1-1/2 3fl N/c

UNSPSC: 23242511
Manufacturer PN: 17060
$16.06 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Standard Length, Series: 323M, 7/64 in Cutter Dia, 1-1/2 in Overall Length, 3/8 in Length of Cut, 3 Flutes, Spiral Flute, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 1-1/8 in Shank Length, Solid Submicron Carbide, Uncoated

  • Features

  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter7/64 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/8 in
MaterialSolid Submicron Carbide
Number of Flutes3
Overall Length1-1/2 in
Series323M
Shank Diameter1/8 in
Shank Length1-1/8 in
TypeBall End Center Cutting Standard Length

Additional Information

Country of OriginUS
