GARR GARR 16353

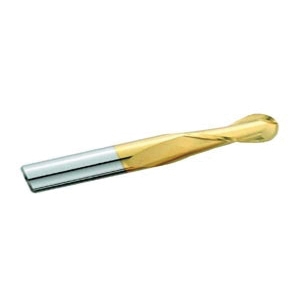

GARR 16353 320MT Ball Nose Center Cutting Standard Length End Mill, 3/4 in Dia Cutter, 1-1/2 in Length of Cut, 2 Flutes, 3/4 in Dia Shank, 4 in OAL, TiN Coated

Invoice description: Bem 3/4x1-1/2locx3/4x4 2fl Tin

UNSPSC: 27112803
Manufacturer PN: 16353
$181.12 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Standard Length, Series: 320MT, 3/4 in Diameter Cutter, 4 in Overall Length, 1-1/2 in Length of Cut, 2 Flutes, Helix Flute, 3/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, TiN Coated

  • Features

  • Improved lubricity - 10% faster than uncoated
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter3/4 in
Cutting DirectionRight Hand
FinishTiN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut1-1/2 in
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length4 in
Series320MT
Shank Diameter3/4 in
TypeBall Nose Center Cutting Standard Length

Additional Information

Country of OriginUS
