GARR GARR 16113

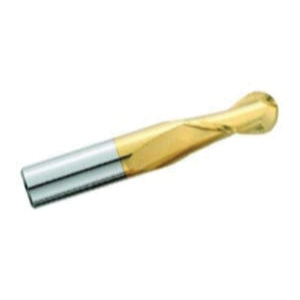

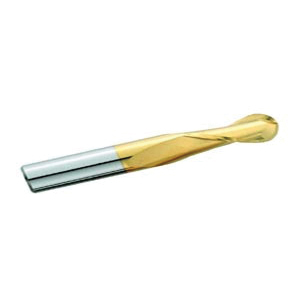

GARR 16113 320MT Ball Nose Center Cutting Standard Length End Mill, 3/16 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 3/16 in Dia Shank, 2 in OAL, TiN Coated

Invoice description: Bem 3/16x5/8locx3/16x2 2fl Tin

UNSPSC: 27112803
Manufacturer PN: 16113
$21.22 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball Nose Center Cutting Standard Length, Series: DC150, 3/16 in Cutter Dia, 2 in Overall Length, 5/8 in Length of Cut, 2 Flutes, Helix Flute, 3/16 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Submicron Solid Carbide, TiN Coated

  • Features

  • Improved lubricity - 10% faster than uncoated
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter3/16 in
Cutting DirectionRight Hand
FinishTiN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut5/8 in
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length2 in
Series320MT
Shank Diameter3/16 in
TypeBall Nose Center Cutting Standard Length

Additional Information

Country of OriginUS
